EMG 10-REL/KSR-G 24/ 1-LC Relay Module - 2942108

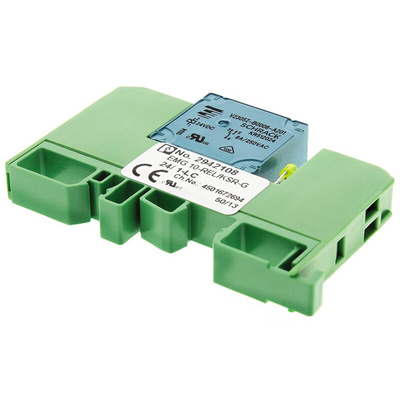

The 2942108 from Phoenix Contact is a miniature switching relay (pre-soldered into the unit) that is mountable on a DIN rail. The relay is rated up to 24 V DC, with a response time of 7ms & release of just 11ms. This module also comes with a yellow LED on the front to help you easily diagnose if the module is getting the correct voltage. The contact is a single contact, 1N/O contact.

Connecting wires to the unit is effortless, with the module featuring a screw connection. Not to mention, this is a miniature unit with a width of only 10.6mm making it fit in any rack or can't box with ease.

Features and benefits:

• SPNO relay (Single-pole normally open)


• Safe isolation according to DIN EN 50178 between coil and contact


• Integrated input circuit and interference suppression circuit


• Pre-soldered relay to make to installation process that much easier


• Small width & DIN rail mountable means it will sit in any racking or cabinet with ease


• Screw connection method (M3 screw) for the wires - 8mm stripping needed


• Reverse polarity protection & free-wheeling diode damping diode


• Yellow LED on the unit provides easy to see voltage display


• Single contact - 1 N/O contact


• Operating temperatures of -20 °C ... 40 °C with an IP20 protection level
