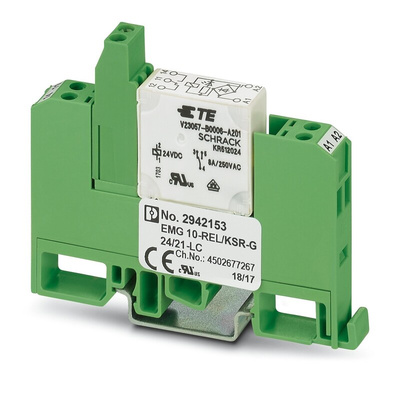

2942153, Phoenix Contact EMG REL Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole, Реле

Phoenix Contact Interface Relay, M3 Screw Connection Type, 8mm Stripping Length - EMG 10-REL/KSR-G 24/21-LC - 2942153

Controlling large circuits is a breeze with this Phoenix Contact interface relay. When supplied with 24V DC, it makes or breaks a connected circuit with a rating of up to 250V AC/DC. For crystal-clear signalling, it has built-in galvanic isolation, which separates the input and output to protect against EMI. The unit withstands temperatures between -20°C and +40°C, so it's just the thing for harsh work areas. It's also highly reliable, as shown by its service life of 20 million cycles.
For versatility, this unit accepts wires in a broad cross-section range of 24 to 12AWG. A test voltage of 4kV AC assures you it holds its own against sudden electrical surges. Relays like this one are found everywhere from fuel pumps to motor control and automotive applications.

Features & Benefits

• Typical input current of 21mA, so it doesn't guzzle electricity
• Yellow LED display for easy status monitoring
• Slim size of 10.6 (W) x 75 (H) 62.5mm (D) means it squeezes into tight setups
• EN 50178 compliance shows it meets the minimum requirements for the safe design of electrical equipment in power installations in Europe
• Mountable in any position for flexibility

Datasheet 2942153

Datasheet 2942153

Line Drawing - 2942153
