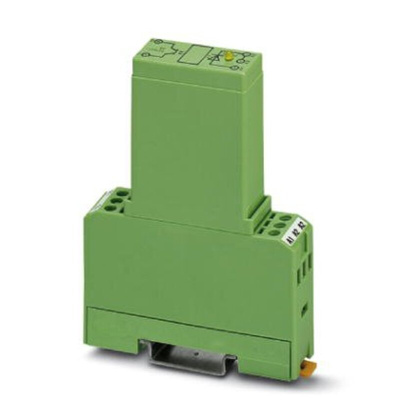

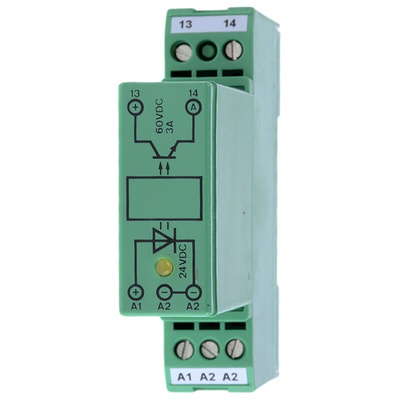

2954154, Phoenix Contact EMG 17-OV- 24DC/ 60DC/3 Series Solid State Interface Relay, DIN Rail Mount, Оптопара

Solid State Module, Series EMG-OV

EMG-OV power opto couplers are used as the modular interface in all industrial fields for signal amplification to 230V / 3A and for electrical isolation.
Input and output end suppressors, integrated operating display and a 3.5 kV test voltage ensure maximum safety and reliability.

Phoenix Contact Optocoupler, 3500V Isolation Voltage - EMG 17-OV- 24DC/60DC/3 - 2954154

This reliable optocoupler from Phoenix Contact provides a high level of protection for your electrical circuit. It's a solid-state relay for fast contact switching in your frequently used devices. The electrical components provide a swift response time of 20μs (microseconds), offering almost immediate protection to your equipment. This safety component has input and output suppressors to prevent surges. Thanks to an electrical isolation voltage of 3500V and a maximum forward voltage of 24V, you can rest assured that it provides maximum safety and reliability.
The modular design simplifies installation and maintenance. It's suitable for installation on a DIN rail and is mountable in any position on your panel for added versatility. An LED (light-emitting diode) provides you with a clear indicator of the status of your device, making it simple to use.

Features & Benefits

• Wide operating temperature range of -20°C to +60°C for use in a variety of demanding environments
• Compact dimensions of 102 (length) x 17.5 (width) x 75mm (depth) to take up minimal space on a distribution board
• IP20 (ingress protection) rating means it's finger-safe for enhanced protection
