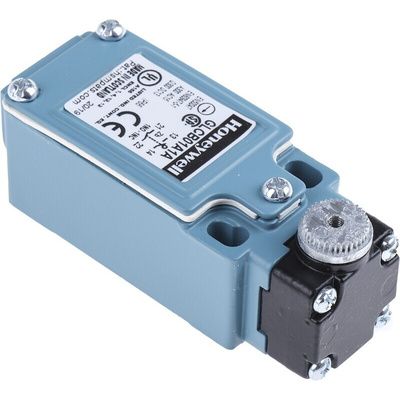

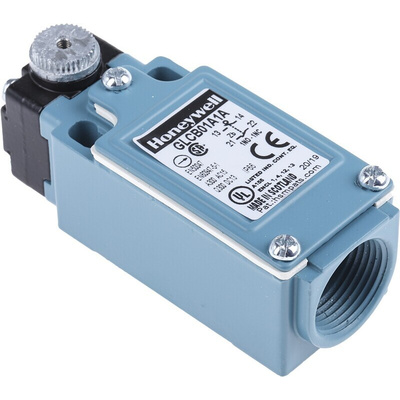

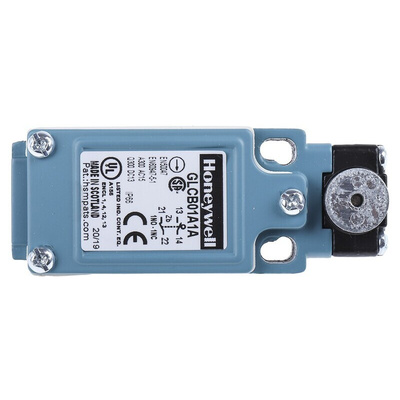

GLCB01A1A, Honeywell GLC Series Roller Lever Limit Switch, NO/NC, IP66, SPDT 1NO/1NC, Die Cast Zinc Housing, 300V ac Max, 10A Max

Honeywell Roller Lever Limit Switch, NO/NC, 300V AC/DC - GLC Series - GLCB01A1A

This Honeywell limit switch monitors and controls your electrical connection to enhance its safety. The switch has a roller lever actuator that makes contact with the electrical connection. The actuator then rotates the switch body that turns the current on or off. It also has a terminal that makes it simple to fix and wire to a circuit. The modular design of this limit switch means you can quickly and easily replace individual components as needed.

Features & Benefits

• Die-cast electrostatic epoxy-coated zinc construction for durability and resistance to corrosion
• IP66 (ingress protection) rating means it can withstand exposure to dust and high-pressure water sprays
• Maximum torque of 16N for a tightly fastened, long-lasting connection
• Switching contacts have a snap-action mechanism for a rapid mechanical response
• Compact dimensions of 68.5 (length) x 30.5 (width) x 26.35mm (depth) for use in areas where space is limited

Applications

• Agricultural equipment
• Machine tools
• Elevators and hoists
• Railroad locomotives
• Textile machinery

Is this limit switch suitable for fast automated conveyors?

Yes. The snap-action normally closed (NC) contacts on this limit switch allow for the rapid switching action needed with automated conveyors.

Approvals

UL; CSA

Standards

EN 50047

Approvals

UL/ UL listed for Canada
