GLCB01E7B, Honeywell GLC Series Coil Spring Limit Switch, NO/NC, IP66, SPDT 1NO/1NC, Die Cast Zinc Housing, 300V ac Max, 10A Max

Honeywell Coil Spring Limit Switch, NO/NC, 10A - GLC Series - GLCB01E7B

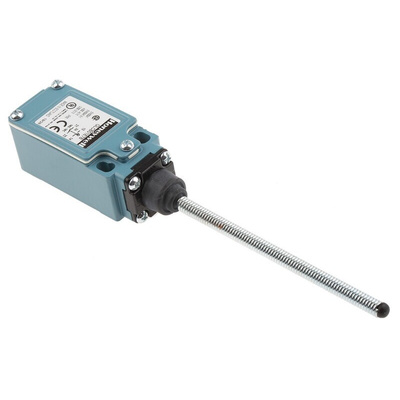

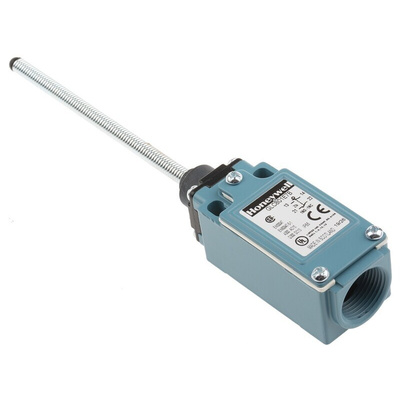

Regulate your electrical connection with this limit switch from Honeywell. The switch consists of an actuator head for contacting the connection, a switch body for making or breaking the circuit and a terminal for installation. The coil spring-type actuator moves in any direction and is ideally suited for object counting on conveyers. Its compact dimensions of 68.5 (length) x 30.5 (width) x 26.35mm (depth) make it easy to install and maintain, even in tight or awkward spaces. Thanks to its die-cast zinc housing, it's highly durable and resistant to corrosion and impact, making it a good choice for use in harsh environments.

Features & Benefits

• Broad operating temperature range of -40°C to +85°C for use in extreme environments
• Long-lasting mechanical lifespan of up to 15 million operations
• Current is galvanically isolated by single pole double throw (SPDT) contacts for efficient switching
• Safeguarded from dust and high-pressure water sprays thanks to its IP66 (ingress protection) rating

Applications

• Conveyors
• Railroad locomotives
• Machining centres
• Automotive assembly lines
• Construction machinery

Can I repair this limit switch if needed?

Yes. The three-part modular design of this switch makes it simple to adjust and maintain.

Approvals

UL; CSA

Standards

EN 50047

Approvals

UL/ UL listed for Canada
