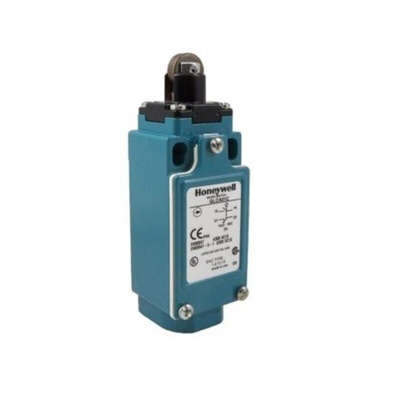

GLCB01D, Honeywell GLC Series Roller Lever Limit Switch, NO/NC, IP66, SPDT 1NO/1NC, Die Cast Zinc Housing, 300V ac Max, 10A Max

Honeywell Snap-Action Roller Lever Limit Switch, NO/NC, 68.5mm Length - GLC Series - GLCB01D

Use this limit switch from Honeywell to control mechanical operations in your workplace. Its durable die-cast zinc construction is resistant to impact and corrosion for use in demanding environments. A robust mechanical lifespan of up to 10 million operations means it will last a long time. You can position the actuators at increments of 90° for enhanced flexibility during installation. Its IP66 (ingress protection) rating means it's protected against dust and high-pressure water jets.

Features & Benefits

• Removable contact block for quick and easy installation
• Wide operating temperature range of -40°C to +85°C for use in hot and cold environments
• Snap-action mechanism for rapid switching action and speedy response times
• Insulation voltage rating of 300V for use in high-power applications
• Compact dimensions of 68.5 (length) x 30.5 (width) x 26.35mm (depth) for installation in areas where space is limited

Applications

• Lift trucks
• Transportation equipment
• Textile machinery
• Construction industry
• Escalators

Does this switch's actuator move clockwise or anti-clockwise?

You can set the rotary actuator heads on this switch to move clockwise, anti-clockwise or both, making it a versatile choice.

Approvals

UL; CSA

Standards

EN 50047

Approvals

UL/ UL listed for Canada

GLC( Metal) Limit Switch Layout Drawing

Honeywell Limit Switch Comparison

Installation Instructions

Datasheet

Brochure - Transportation Industry Providing Technical Safety & Productivity Solutions

Product Range Guide - Limit Switches & Machine Safety
