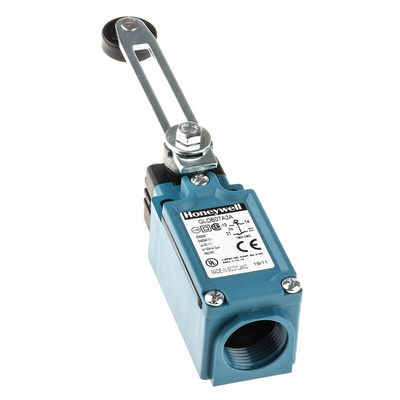

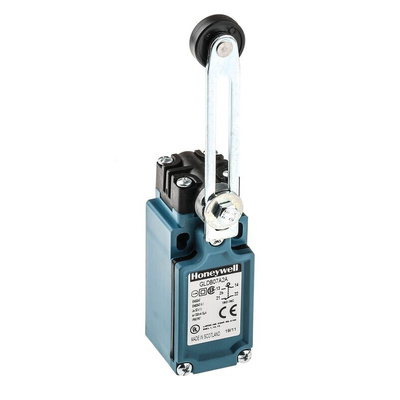

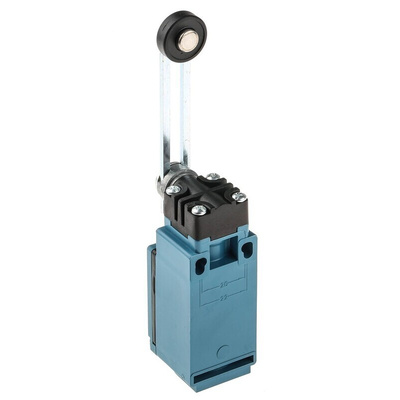

GLDB07A2A, Honeywell GLD Series Adjustable Roller Lever Limit Switch, NO/NC, IP66, SPDT 1NO/1NC Gold Contacts, Thermoplastic

Honeywell Snap-Action Adjustable Roller Lever Limit Switch, NO/NC - GLD Series - GLDB07A2A

This roller lever limit switch from Honeywell is an electromechanical device used for object detection in industrial machinery. The compact component consists of an adjustable roller lever actuator that you can modify to your specifications. It works by activating or deactivating the electrical contacts when an object comes in contact with its actuator.
This limit switch allows you to control two separate circuits with the help of isolated contacts for increased efficiency. It also has a high tolerance to shock and vibrations, so it's ideal for use in demanding environments.

Features & Benefits

• Sensitive contacts for quick and accurate response
• Wide operating temperature range of -40°C to +85°C for use in harsh conditions
• Long mechanical life of 10 million cycles for long-lasting performance
• Actuator heads allow for clockwise (CW), counterclockwise (CCW), or CW and CCW actuation for added versatility

Applications

• Material handling equipment
• Passenger elevators
• Platform lifts

How do I adjust the position of this limit switch?

To adjust this limit switch, first release the mounting screw holding the lever. Then adjust the position according to your specifications and retighten the screw.

Approvals

UL; CSA

Approvals

UL/ UL listed for Canada
