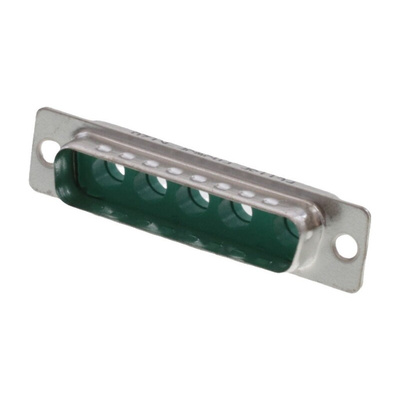

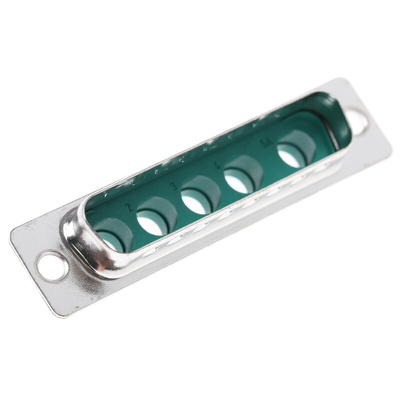

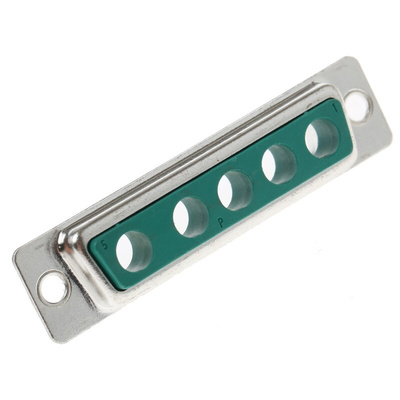

FM5W5P-K120 / 1727040033, FCT from Molex FM 5 Way Panel Mount D-sub Connector Plug, Разъем

Plug and Socket Shells

Signal contacts with solder bucket terminations
Cavities for power/coaxial contacts (available separately)

Note

Panel mounting dimensions are as the equivalent standard ’D’ connector shell size.

FCT from Molex D-Sub Connector Housing, Steel Shell, 7.3g Weight - FM Series - FM5W5P-K120 / 1727040033

Reliably shield serial cable sockets in contaminated industrial settings with this D-sub connector housing by FCT from Molex. It features a tin-plated steel shell that holds its own against mechanical impact and corrosion, making it fit for harsh environments. PBT insulation is on hand to fend off electrical hazards, keeping you safe during installation. The unit is polarised to the mating part of your PCB, ensuring you insert your adapters correctly.

Features & Benefits

• Light weight of 7.3g puts minimal strain on the mounting surface
• Low-halogen design to reduce the emission of toxic fumes in the event of a fire
• Safe to use in challenging settings thanks to an operating temperature range between -55°C and +130°C

Applications

• Telecommunications networks
• Electrical workshops
• Power transmission stations

Is this connector housing touch-proof?

Yes, its IP20 rating shows it's resistant to dust and objects bigger than 12mm.

Mixed Contact 'D'

Mixed contact connectors suitable for making combined signal and power connections. Plug and socket options with solder bucket or 90° PCB terminations. Shell definition: 17W2 shell can have 17 mixed contacts in total. Shell is supplied with 15 signal contacts and has 2 cavities for power or coaxial contacts. Suitable for military, industrial or commercial applications and computer interfacing etc

D-Sub Mixed Layout Connectors / Steckverbinder

Datasheet

Datasheet

Line Drawing - FM5W5P-K120 / 1727040033
