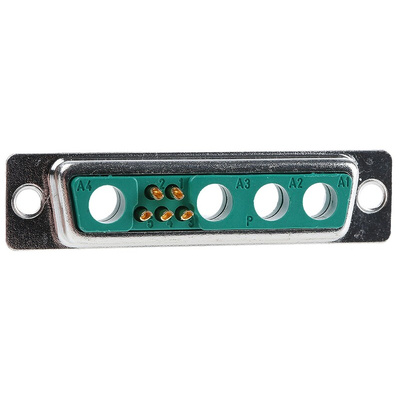

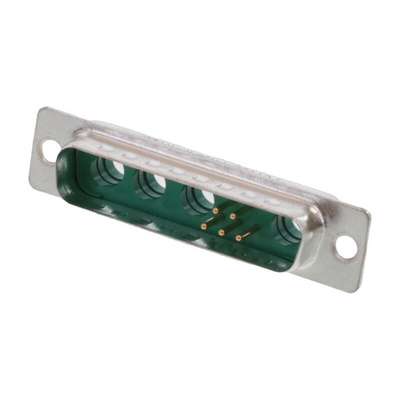

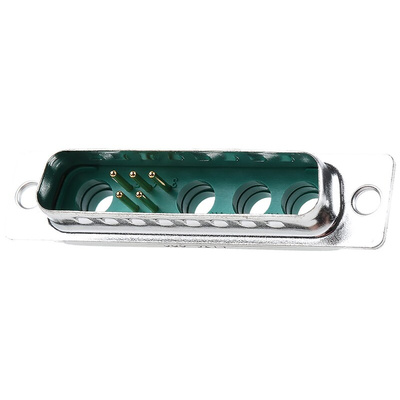

FM9W4P-K120 / 1731070061, FCT from Molex FM 9 Way Panel Mount D-sub Connector Plug, Разъем

Plug and Socket Shells

Signal contacts with solder bucket terminations
Cavities for power/coaxial contacts (available separately)

Note

Panel mounting dimensions are as the equivalent standard ’D’ connector shell size.

Molex D-Sub Connector, IP20 Rating, Shielded - FM 173107 Series - FM9W4P-K120 / 1731070061

Want to make a rock-solid serial-port connection? Choose this D-sub connector from Molex to link up devices such as printers and monitors. A steel shell protects against impact damage, so you can be confident it's as tough as nails. To handle extreme environments, the unit operates safely in temperatures between -55°C and +130°C. Copper alloy contacts keep signal loss at bay, providing uninterrupted data transmission. The green resin insert stands out to make locating the contact points a breeze.

Features & Benefits

• Rear panel mounting for easy access to cable connections
• PBT resin is flame-resistant for fire safety
• 500 mating cycles to deliver long-lasting performance

Applications

• Computer systems
• Industrial automation
• Broadcasting equipment
• Power distribution

Is this connector finger-safe?

Yes, an IP20 rating indicates it's protected against objects over 12mm in size, so you can touch it without getting a shock.

Mixed Contact 'D'

Mixed contact connectors suitable for making combined signal and power connections. Plug and socket options with solder bucket or 90° PCB terminations. Shell definition: 17W2 shell can have 17 mixed contacts in total. Shell is supplied with 15 signal contacts and has 2 cavities for power or coaxial contacts. Suitable for military, industrial or commercial applications and computer interfacing etc

D-Sub Mixed Layout Connectors / Steckverbinder

Datasheet

Line Drawing - FM9W4P - K120 / 1731070061

Datasheet
