FM9W4S-K121 / 1731070062, FCT from Molex FM 9 Way Panel Mount D-sub Connector Socket, 2.84mm Pitch

Plug and Socket Shells

Signal contacts with solder bucket terminations
Cavities for power/coaxial contacts (available separately)

Note

Panel mounting dimensions are as the equivalent standard ’D’ connector shell size.

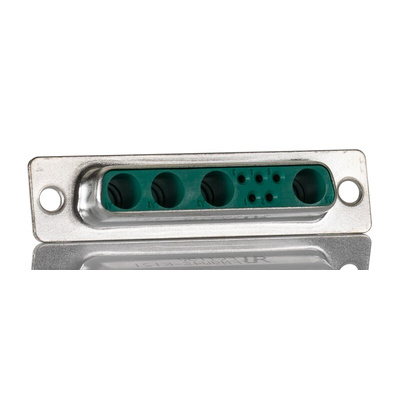

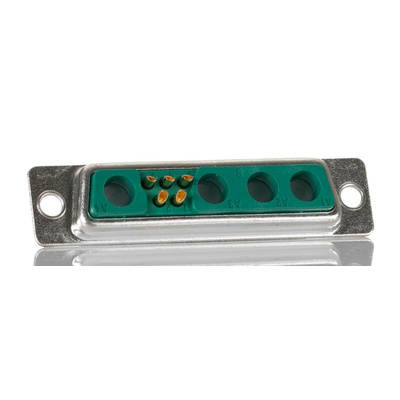

FCT from Molex D-Sub Connector, Solder Cup Terminals, -55°C to +130°C Operating Temperature - FM Series - FM9W4S-K121 / 1731070062

Help deliver power and data to equipment with this FCT from Molex D-sub connector. This 9-way socket has a mixed layout with five loaded signal contacts and a 7.5A current rating. This makes it handy for coaxial, high voltage and pneumatic applications. A strong steel shell means the unit is well-suited to use with industrial automation and computing devices. Integrated flanges give you an easy way to mount it onto machines and panels.

Features & Benefits

• Performs reliably in a wide temperature range from -55°C to +130°C
• Copper-alloy contacts and gold-over-nickel contact plating ensure it's highly conductive and durable
• Electrical shielding and insulation minimise the risk of hazards

Applications

• Telecommunication centres
• Industrial automation
• Medical equipment

How do I terminate wires to this connector?

The component uses the tried-and-tested solder termination method. It has integral cups to hold the wires, so you know they're correctly positioned and firmly fixed.

Mixed Contact 'D'

Mixed contact connectors suitable for making combined signal and power connections. Plug and socket options with solder bucket or 90° PCB terminations. Shell definition: 17W2 shell can have 17 mixed contacts in total. Shell is supplied with 15 signal contacts and has 2 cavities for power or coaxial contacts. Suitable for military, industrial or commercial applications and computer interfacing etc

D-Sub Mixed Layout Connectors / Steckverbinder

Datasheet

Datasheet

Line Drawing - FM9W4S-K121 / 1731070062
