78636046 I1M/SS-SOND, Eaton Grey Stainless Steel RMQ Titan Push Button Enclosure - 1 Hole 22mm Diameter, Корпус

1.2mm Stainless Steel

RA104 3.5mm gasket
External fixing lugs
M5 self retaining stainless steel screws
Fully compliant to EN418

Eaton RMQ Titan Push Button Enclosure, 22 mm Hole Diameter - RMQ-Titan / M22 Series - I1M/SS-SOND(RS309-1431)

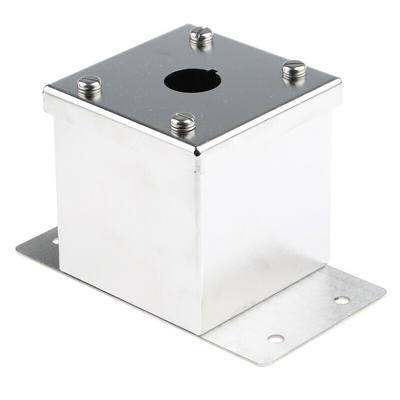

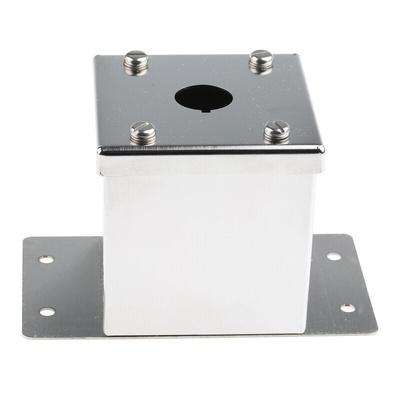

To safely mount pushbuttons, selector switches and indicator lights in electronic control cabinets or industrial machinery, choose this steel enclosure from Eaton. It features a central hole on the top to accommodate fitting accessories of your choice. The unit is made from high-grade stainless steel, so it resists rust and corrosion and offers reliable performance. Two mounting tabs on the side make it simple to install on the surface of your equipment without having to remove the cover of the enclosure.

• Compact dimensions of 84 (height) x 85 (width) x 140 mm (depth) for use in tight spaces
• Self-retaining screws for a fail-safe connection
• Chemical-resistant chloroprene gasket for protection against the elements
• Wide operating temperature range of -45°C to +80°C for use in heavy-duty industrial environments

Is this unit suitable for outdoor use?

This stainless steel enclosure has an IP (ingress protection) 65 rating. This means it's dust-tight and resistant to low-pressure water jets, so it's safe for outdoor use.

What kinds of accessories can I use within this enclosure?

Enclosures like these are typically used to mount illuminated and key-operated pushbuttons, selector switches, key-operated pushbuttons, controlled stop buttons and emergency stop buttons.

Note

Eaton formerly known as Moeller

Enclosures featured come with 22mm holes unless otherwise stated.

Rust-proof steel enclosure M22-I1M/SS
