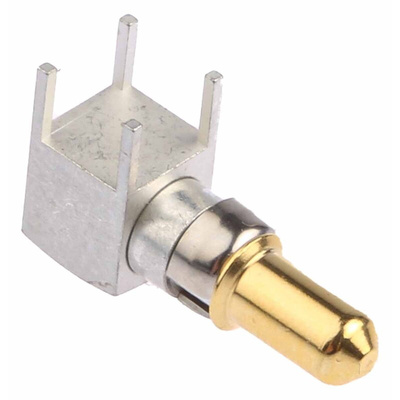

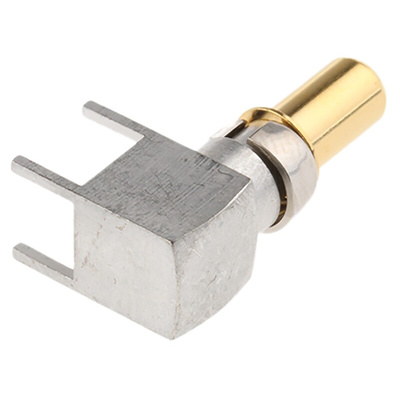

RS PRO Right-Angle Male Gold Copper Alloy DIN Connector Contact

Use this RS PRO right-angle contact to create a solid and reliable connection when building a DIN connector for your computer system. It's made from a highly conductive copper alloy, improving the component's efficiency. It's also gold-plated for corrosion resistance. The through-hole mounting provides a stable attachment, as you can crimp or solder the contact to a coaxial cable.


This contact is suitable for use in 90° adaptors thanks to its right-angled orientation. You can also use it to connect plug-in cards to backplane wiring or link two parallel printed circuit boards (PCBs).


Like all our trusted RS PRO range products, this contact has been strictly tested for consistency and quality. This type of DIN connector is often used in data and telecommunications, as well as in measurement and control applications.

Features and Benefits

• Suitable for use with a DIN41612 type M male connector


• Maximum contact resistance of 1 mΩ


• Current rating of 40 A


• Operating temperature range of -55°C to +125°C


• Complies with RoHS (Restriction of Hazardous Substances) standards


• Complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
