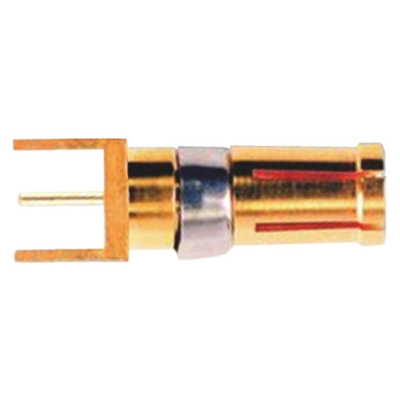

FME010S102 / 1731120049, FCT from Molex, 173112 Series, Female Solder D-Sub Connector Coaxial Contact, Gold over Nickel Coaxial, Контакты

Coax, power and high-voltage contacts

A range of Coax, power and high-voltage contacts from FCT.

Power and coax contacts matching “D” hybrid contact plug housings
Contacts snap into housing
Can be removed using the ejection tool
Power contacts have soldered terminals
Coax contacts (straight type) accept RG178B/U and RG174A/U cables with crimping and soldered terminals
For use with crimping tool (see DIN41612 plug, type "M")
High-voltage contacts available for connecting voltages up to 3 kW

Warning

Description "pin" or "jack" refers to the middle contact in each case

Mixed Contact 'D'

Mixed contact connectors suitable for making combined signal and power connections. Plug and socket options with solder bucket or 90° PCB terminations. Shell definition: 17W2 shell can have 17 mixed contacts in total. Shell is supplied with 15 signal contacts and has 2 cavities for power or coaxial contacts. Suitable for military, industrial or commercial applications and computer interfacing etc

Datasheet - FME010S102 / 1731120049
