RS PRO , Straight , Female , Copper Alloy , Backplane Connector Contact, Контакты

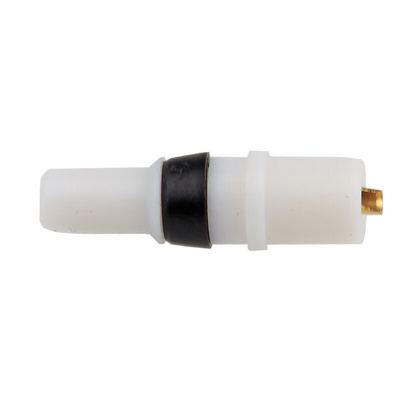

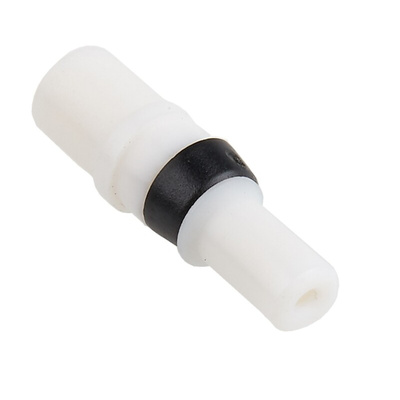

RS PRO Straight Female Copper Alloy DIN Connector Contact

This RS PRO female contact DIN (Deutsches Institut für Normung) connector is designed for use with backplane connectors in computer systems. It helps transfer signals and power from your printed circuit board (PCB). You can use this versatile component with a range of connector shells, including layout, high voltage and coaxial varieties.
This contact is designed for cable mounting to reduce signal interference. It comes with a snap-fit contact for a more secure connection – simply crimp the braid and solder the centre contact, which is made from copper alloy for good conductivity.
This type of product has a range of applications in military, industrial and commercial settings. As part of our trusted RS PRO range, it has been strictly tested for quality and consistency. It meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, so its parts are protected against electrostatic discharge and other electrostatic phenomena.

Features and Benefits

• Suitable for use with DIN41612, Type M male connectors
• Straight mount orientation
• Female connector gender
• Maximum contact resistance of 3 mΩ
• Current rating of 2 A
• Operating temperature of -55°C to +125°C
• Complies with RoHS (Restriction of Hazardous Substances) standards

RS Pro Datasheet
