RS PRO 5m 8mm diameter Green Round Polyurethane Belt for use with 76mm minimum pulley diameter, Полиуретановый ремень

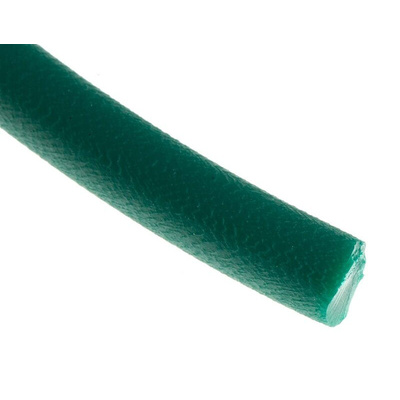

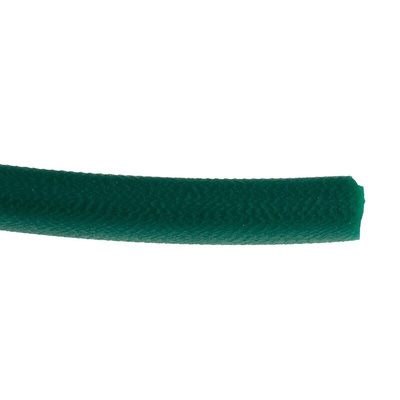

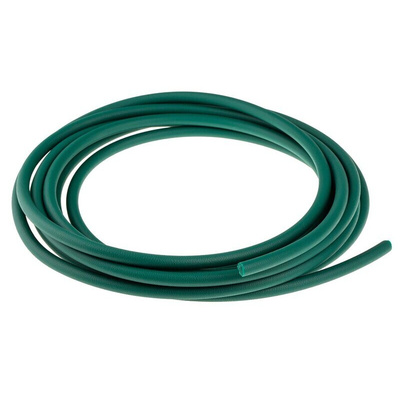

RS PRO Green Round Polyurethane Belt

RS PRO round polyurethane belts are used in manufacturing systems to assist with the transfer of power, such as factory floor conveyor rollers and packaging equipment.

The belt has a diameter of 8 mm, length of 5 m and a working-load capacity of 14 kg based on an 8% tension. The properties of the material make it particularly well designed for use with pulley systems where a twist is needed to drive it at an angle. Also, the elasticity and high tensile strength offered by polyurethane make it easier to join together and manipulate compared to regular rubber.

You can use it in many types of work settings, such as distribution warehouses and factories as it has good resistance to chemicals, oils and abrasion. It has a safe temperature operation range of -30°C to +80°C.

Features and Benefits

• Round green polyurethane belt
• Hardness of 88 Type A
• Length of 5 m
• Diameter of 8 mm
• Minimum pulley diameter of 76 mm
• Minimum operating temperature of -30°C
• Maximum operating temperature of +80°C
• Not food certified

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
