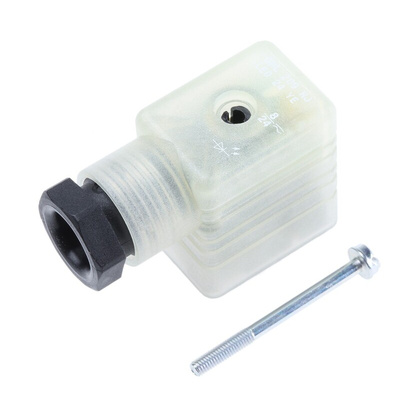

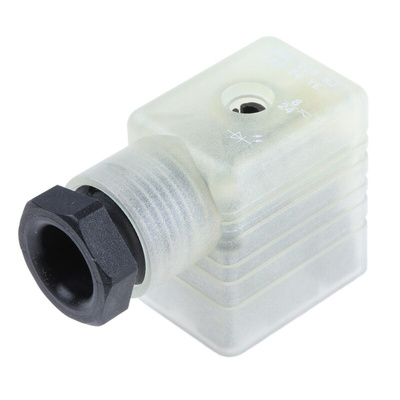

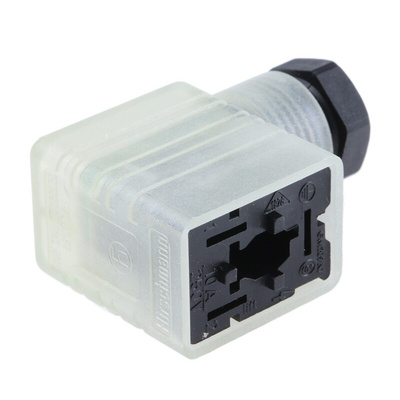

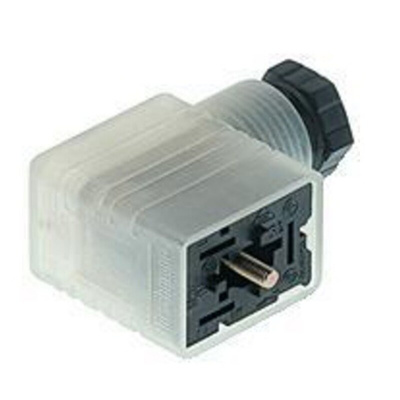

933571100 GML 209 NJ LED 24 YE black, Hirschmann GML 2P+E DIN 43650 B, Female Solenoid Valve Connector, with Indicator Light, 24 V ac/dc Voltage, Разъем

Belden Hirschmann Solenoid Valve Connector, 8A Current Rating, 4.5 to 7mm Cable Diameter - GML Series - 933571100 GML 209 NJ LED 24 YE black

Be certain of secure power connections throughout your fluid-based systems with this Hirschmann solenoid valve connector from Belden. Its tin contacts form efficient electrical connections, providing a reliable power supply for your valves. A built-in earth conductor stops excess electricity building up and supports operator safety. The device's standardised shape means it's widely compatible with industrial hardware. As it screws tightly into your system, it experiences minimal disruption caused by vibration.

Features & Benefits

• IP65 rating indicates full protection against dust and low-pressure water jets for use in harsh environments
• Yellow LED power indicator for quick troubleshooting
• Robust PA housing for effective shock resistance

Applications

• Domestic appliances
• Irrigation systems
• Aerospace industry

What supply voltages can I use this connector with?

This unit works with both AC and DC voltages rated at 24V, so it's a versatile option.

Industrial Standard Hirschmann

A comprehensive range of cable sockets and appliance connector bases typically for use with solenoid valves on pneumatic and hydraulic equipment. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.

2P+E
Ambient temperature: -40°C to +90°C

Datasheet
