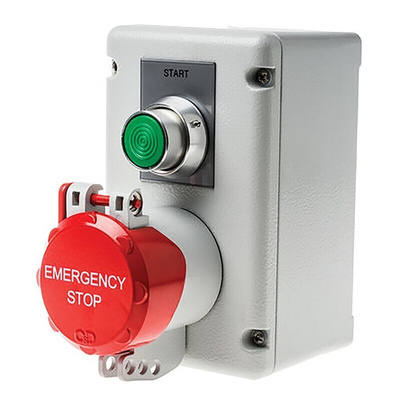

SSTH/GS/P/F1/MG/CO, Craig & Derricott Momentary (Start), Pull to Reset (Stop) Push Button Control Station - NO/NC, Die Cast Aluminium,

Aluminium Enclosed Pushbutton Stations

Pull to reset push buttons all with coverable flaps to prevent inadvertent reset
Heavy duty die-cast aluminium enclosure
Suitable for indoor or outdoor applications
Stock no. 310-3972 features a lockable flap which is padlockable and has to be unlocked to reset push button, padlock holes 2x14mm allow several padlocks to be fitted
Ingress protection to IP65
1 x M20 tapped conduit entry
Screw terminal, block type contacts cable size 2x2.5mm² maximum
Standards: BS EN 60947-5-1, BS EN 60947-5-5

Note

Allow for an extra 75mm depth for the swing of the flap.

Approvals

BSEN418; BSEN292

Datasheet
