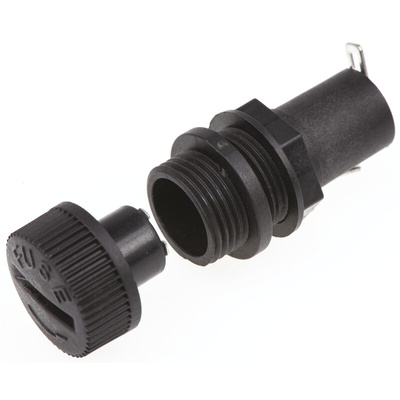

HTC-30M, Eaton 6.3A Panel Mount Fuse Holder for 5 x 20mm Fuse, 250V ac, Держатель предохранителя

Eaton Bussmann Panel Mount Fuse Holder - HTC Series

The Eaton Bussmann HTC Series of fuse holder is panel mount and offers current and voltage ratings of 6.3 Amp and 250 Volts respectively. Designed for 5 mm x 20 mm cartridge and ferrule fuses. The body of this holder is made of high temperature thermoplastic material and tin plated brass is used for contact.

Features and Benefits

• Compatible with 5 mm x 20 mm fuses
• High rated power acceptance
• Integrated protection against electrical shock
• Quick connect terminal type
• Finger/tool release screw cap
• Protection: PC2

Applications

• General circuit protection
• Illuminated signs
• Lighting connectors
• Sockets and switches
• Vehicle electrical circuits

Eaton Slotted Cap Panel Mount Fuse Holder, 6.3A, 250V - HTC Series - HTC-30M

This compact fuse holder from Eaton is a secure housing for the fuses that protect your electrical circuits from overcurrents. As it comes with quick-connect terminals, this unit saves on installation time as it calls for minimal wiring. Thanks to a slotted screw cap, replacing the fuse is quick, easy and doesn't need specialist tools.
The unit's thermoplastic body material not only provides effective resistance to impact and corrosion but also serves as an insulator to protect you from electric shock. You'll find holders like this one commonly used in lighting systems and domestic appliances like blenders and electric irons.

Features & Benefits

• Tin-plated brass contacts for long-lasting performance and reliable conductivity
• Voltage rating of 250V and current rating of 6.3A, so suitable for low-voltage applications
• Live parts are inaccessible to touch, for reliable electrical safety

Does a fuse holder have an interrupting current rating?

While fuses have interrupting ratings, fuse holders don't. This is because a fuse holder isn't designed to stop the flow of incoming current.

Note

Eaton formerly known as Bussmann

Panel Mounting

CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.
