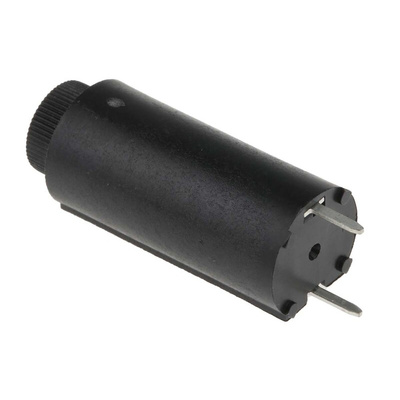

HTC-45M, Eaton 10A PCB Mount Fuse Holder for 5 x 20mm Fuse, 1P, 250V ac, Держатель предохранителя

Eaton Bussmann Bayonet Cap, PCB Mount Fuse Holders - HTC Series

The Eaton Bussmann HTC Series of PCB mount fuse holder offers current ratings and voltage ratings of 6.3 Amp and 250 Volts respectively. These vertical or horizontal surface mount fuse holders provide the installation hardware for a fuse and prevents accidental misuse in a circuit. It includes 5mm x 20mm cartridge type fuse carrier and knobs are spring loaded bayonet type with screwdriver slot. The body of this holder is made of high temperature thermoplastic material and tin plated brass is used for contact.

Features and Benefits

• Horizontal or vertical mount formats
• Compatible with 5 mm x 20 mm fuses
• High rated power acceptance
• Integrated protection against electrical shock
• Quick connect terminal type
• Body material is high temperature thermoplastic
• Fuse carriers are easily replaceable
• Shock safety
• Voltage rating is 250V

Applications

• Automotive
• Electronics equipment
• Industrial equipment
• Sockets and Switches

Approvals

UL recognised component; CSA certified; SEMKO

Eaton Slotted Cap PCB Mount Fuse Holder, 5 x 20mm Cartridge Fuse, 250V HTC-45M

Use this PCB (printed circuit board) mount fuse holder from Eaton in your circuits to install, contain and protect your fuses. This reliable and effective holder accommodates standard 5 x 20mm cartridge fuses and offers current and voltage ratings of 6.3A and 250V respectively. You can choose to mount this fuse holder either horizontally or vertically to prevent the accidental misuse of a circuit. Use it for automotive applications and electronic equipment such as sockets and switches.

• Spring-loaded bayonet-type fuse carrier and knobs with screwdriver slot let you easily insert, remove and secure fuses
• Insulated casing prevents electric shocks to enhance safety
• High-temperature thermoplastic body material protects fuses from overheating
• Tin-brass contacts ensure excellent conductivity for uninterrupted operations

Why do fuse holders melt?

Electrical circuits heat up because current flows through resistance to deliver power. If the resistance in the contact between the fuse and the fuse holder is too high, or the current is well below the fuse rating, the fuse holder will melt. That's why it's important to select the correct fuse for your fuse holder and ensure your holder's body material is heat-resistant.

Note

Eaton formerly known as Bussmann

PCB Mounting

Voltage Rating 250V.

CSA 701346

UL E14853

SEMKO 204815

Datasheet - Eaton HTC

Transition to Bussmann Series
