HTC-50M, Eaton 6.3A PCB Mount Fuse Holder for 5 x 20mm Fuse, 1P, 250V, Держатель предохранителя

Eaton Bussmann Bayonet Cap, PCB Mount Fuse Holders - HTC Series

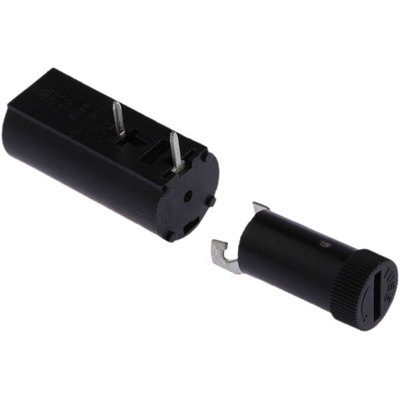

The Eaton Bussmann HTC Series of PCB mount fuse holder offers current ratings and voltage ratings of 6.3 Amp and 250 Volts respectively. These vertical or horizontal surface mount fuse holders provide the installation hardware for a fuse and prevents accidental misuse in a circuit. It includes 5mm x 20mm cartridge type fuse carrier and knobs are spring loaded bayonet type with screwdriver slot. The body of this holder is made of high temperature thermoplastic material and tin plated brass is used for contact.

Features and Benefits

• Horizontal or vertical mount formats
• Compatible with 5 mm x 20 mm fuses
• High rated power acceptance
• Integrated protection against electrical shock
• Quick connect terminal type
• Body material is high temperature thermoplastic
• Fuse carriers are easily replaceable
• Shock safety
• Voltage rating is 250V

Applications

• Automotive
• Electronics equipment
• Industrial equipment
• Sockets and Switches

Approvals

UL recognised component; CSA certified; SEMKO

Eaton Fuse Holder, 10A, 250V AC HTC-50M

Install and protect your fuses using this fuse holder from Eaton. The component is compatible with cartridge fuses with 5mm diameter and 20mm length, such as the Eaton S500 or S501 series. It's easy to install a fuse of this size into the holder as the end caps slot neatly into place. The spring-loaded contacts clip in against the fuse to keep it secure even in heavy-duty environments where vibration is likely. Use this fuse holder in industrial environments to protect electrical equipment, wiring systems and circuit breakers.

• Thermoplastic body material has high resistance to moisture and chemicals
• Solder termination method keeps the holder securely fastened in place and is resistant to industrial vibration
• In a fire, any burning of the holder ceases after 60 seconds

What are the contacts of this fuse holder made from?

The contacts of this fuse holder are made from tin-plated copper. The copper resists heat build-ups to prevent warping, while the tin plating repels rust build-ups and corrosion wear.

Is this fuse holder mounted horizontally or vertically?

This fuse holder can be mounted horizontally or vertically to suit your circuit setup.

Note

Eaton formerly known as Bussmann

PCB Mounting

Voltage Rating 250V.

CSA 701346

UL E14853

SEMKO 204815
