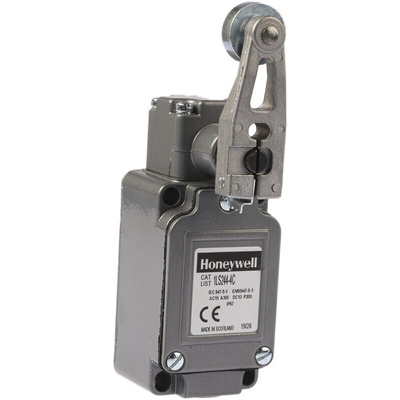

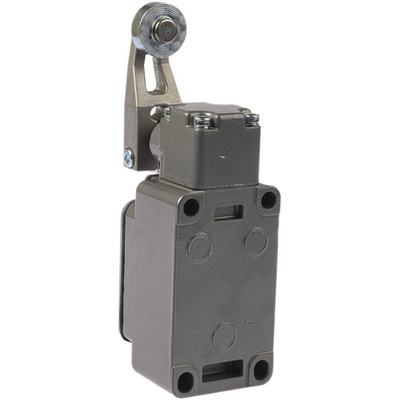

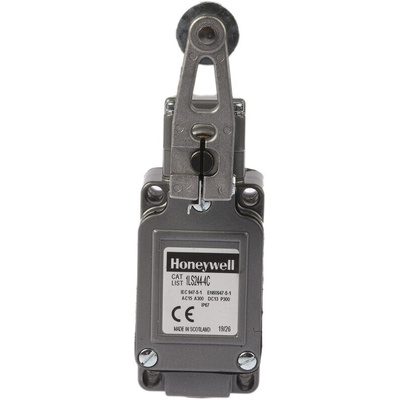

1LS244-4C, Honeywell LS Series Roller Lever Limit Switch, IP67, 480V ac Max, 10A Max

Oil Resistant, High Temperature Limit Switches

2 Circuit, Double Break Snap Action Basic Switch
Positive break NC contact
O-ring seals on actuator shaft
Ring seal between head and body
Seated compression seal between cover and case
Compact, rugged construction, sealed to IP67
Operating temperature range of -10 to +150°C
NEMA 1, 4 & 13

Standards

EN60947-5-1, IEC947-5-1

Honeywell Roller Lever Limit Switch, 480V AC, 10A - LS Series - 1LS244-4C

Use this limit switch from Honeywell to enhance safety and efficiency in your industrial environment. It's a proximity sensing device that opens and closes circuits when objects come into contact with the roller lever actuator. Thanks to its compact dimensions of 111.4 (length) x 40 (width) x 58.5mm (depth), it's suitable for setups with limited space.

Features & Benefits

• O-ring seals on the actuator shaft and ring seal between the head and body for resistance to oils and wear
• Wide operating temperature range from -30°C to +70°C for use in demanding environments

Applications

• Food and beverage industry
• Packaging and textile equipment

Can I use this limit switch in damp or dusty environments?

Yes, this limit switch has an IP67 rating. This means it's completely shielded against dust and can be submerged in 1m of water for up to 30 minutes.

Approvals

UL; CSA
