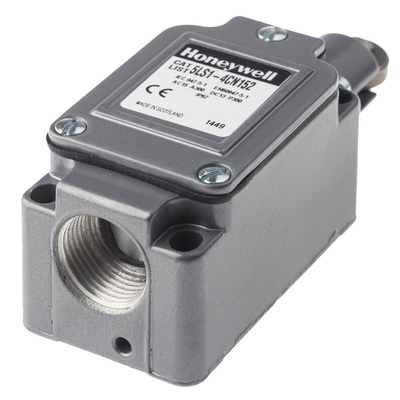

5LS1-4CN152, Honeywell LS Series Plunger Limit Switch, IP67, SPDT, Die Cast Zinc Housing, 480V ac Max, 10A Max

Oil Resistant, High Temperature Limit Switches

2 Circuit, Double Break Snap Action Basic Switch
Positive break NC contact
O-ring seals on actuator shaft
Ring seal between head and body
Seated compression seal between cover and case
Compact, rugged construction, sealed to IP67
Operating temperature range of -10 to +150°C
NEMA 1, 4 & 13

Standards

EN60947-5-1, IEC947-5-1

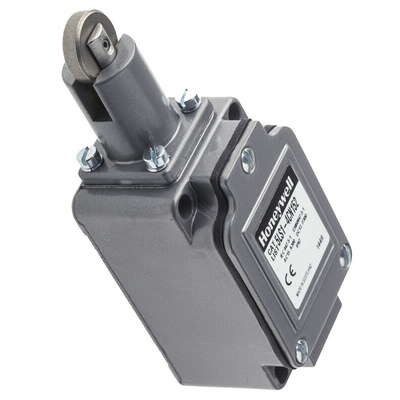

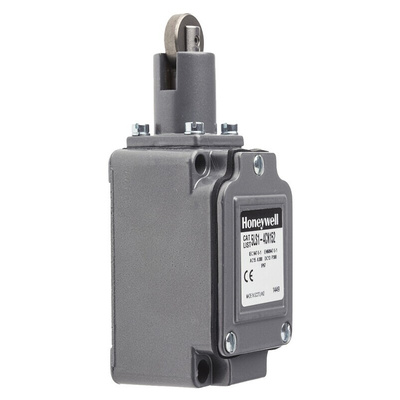

Honeywell Limit Switch, Top Roller Plunger Actuator, 31.4N Operating Force - LS Series - 5LS1-4CN152

Use this limit switch from Honeywell to sense the presence of objects in your machinery. It has an IP67 rating, so it's dust-tight and can withstand submersion in 1m of water for up to 30 minutes. Thanks to its die-cast zinc construction, it's resistant to corrosion and impact for use in harsh environments.

Features & Benefits

• Current rating of 10A for use in high-power applications
• Roller plunger actuator is made of steel for resistance to corrosion and wear
• SPDT circuitry means it can control up to two devices at once for versatility

Applications

• Material handling
• Power plants
• Assembly lines
• Door interlock systems

How do I install this limit switch?

This limit switch has pre-drilled mounting holes, so you can securely screw it in place on your equipment.

Approvals

UL; CSA
