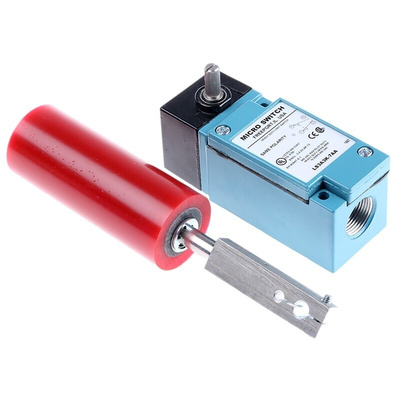

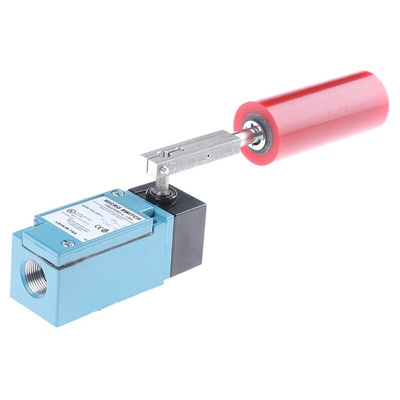

LS3A3K-7AA, Honeywell HDLS Series Roller Lever Limit Switch, NO/NC, IP67, SPDT, Die Cast Zinc Housing, 600V ac Max, 10A Max

Conveyor Alignment Limit Switch

PG 13.5 or 22mm cable entry thread sizes
Excellent corrosion protection
Rugged mechanical construction including heavy zinc alloy die cast head and body housing, all surfaces phosphate coated and epoxy painted external surfaces
Positive break NC contact
Metal anchors used in basic contact block for longer wear and electrical stability
Chrome silicon compression spring for both high and low temperature resiliency
Unsurpassed sealing including standard viton shaft and diaphram seals on rotary styles
NEMA 1, 3, 4, 6, 6P and 13
IP67
UL and CSA approved
CE marked to low voltage directive EN60947-5-1

Standards

EN60947-5-1, IEC947-5-1, AC15, A300 or A600 , DC13, Q300

Approvals

UL; CSA

Heavy Duty Conveyor Alignment Limit Switch - Actuator Dimensions

LS3A3K-7AA Heavy Duty Limit Switch Data Sheet

Heavy Duty Limit Switches Data Sheet

Honeywell Limit Switch Comparison
