GLCC06A2B, Honeywell GLC Series Adjustable Roller Lever Limit Switch, 2NC, IP66, DPST 2NC, Die Cast Zinc Housing, 300V ac Max, 10A

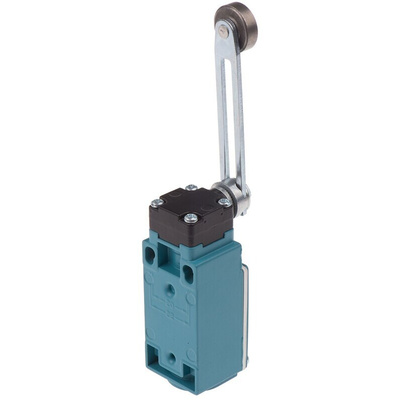

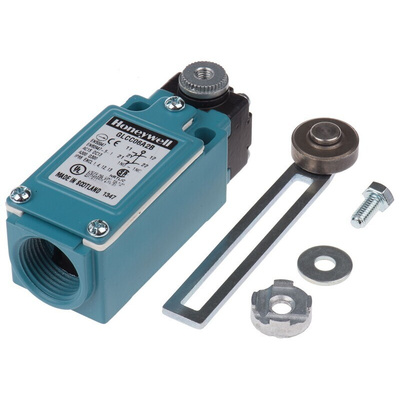

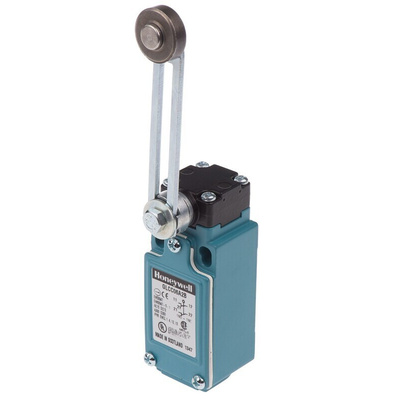

Honeywell Roller Lever Slow-Action Limit Switch, 300V AC/DC, 10A - GLC Series - GLCC06A2B

Make it simple to switch your electrical devices on and off with this slow-action limit switch from Honeywell. Its roller lever actuator is adjustable for versatile use. This type of actuator reduces the amount of force needed to trigger the NC (normally closed) contacts, as the roller creates low levels of friction when moving along your machinery. The switch is suitable for installation in tight spaces thanks to its compact dimensions of 68.5 (length) x 30.5 (width) x 26.35mm (depth). It has a voltage rating of 300V AC/DC for use in high-power systems.

Features & Benefits

• Long mechanical life of 10 million cycles for long-lasting performance
• Wide operating temperature range of -40°C to +85°C for use in demanding environments
• IP66 (ingress protection) rating means it's protected against dust and high-pressure water jets
• Removable contact block for ease of wiring and installation

Applications

• Garage doors
• Construction machinery
• Elevators

What's this roller lever switch made from?

This roller lever switch is made from a durable and corrosion-resistant zinc material, making it a good choice for use in heavy-duty applications.

Approvals

UL; CSA

Standards

EN 50047

Approvals

UL/ UL listed for Canada

Datasheet

Honeywell Limit Switch Comparison

Installation Instructions

GLC Series Drawing

Product Range Guide - Limit Switches & Machine Safety
