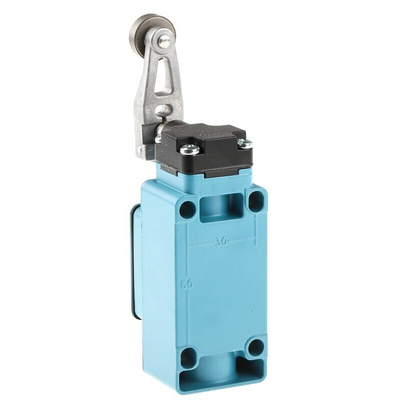

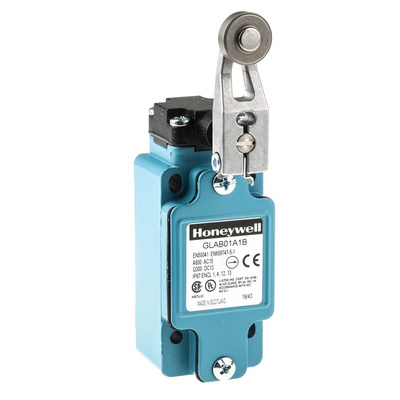

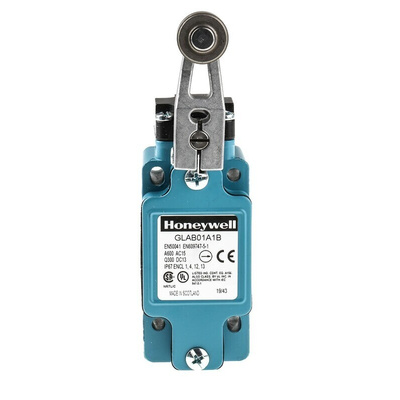

GLAB01A1B, Honeywell GLA Series Roller Lever Limit Switch, NO/NC, IP67, SPDT, Die Cast Zinc Housing, 600V ac Max, 6A Max

Honeywell Snap-Action Roller Lever Limit Switch, 600V AC, 250V DC - GLA Series - GLAB01A1B

This limit switch from Honeywell will help you automate the process of switching electrical devices on and off. The roller lever actuator creates minimal friction as it moves along your device, reducing the amount of force required for switching. A long mechanical lifespan of 15 million cycles means the unit will last a long time. Its wide operating temperature of -25°C to +85°C makes it suitable for use in demanding environments. It also has a die-cast zinc housing for durability and resistance to corrosion.

Features & Benefits

• Maximum voltage rating of 600V AC for use in high-power applications
• Compact dimensions of 145.8 (length) x 42 (width) x 42mm (depth) for use in systems with limited space
• IP67 (ingress protection) rating means it's protected against dust and submersion in 1m of water for up to 30mins
• Removable contact block for easy wiring and installation

Applications

• Assembly lines and conveyor belts
• Railroad signalling
• Aerial lifts

How do snap-action switches work?

Snap-action switches are designed to rapidly transfer energy across contacts, giving you quick on-and-off switching for your devices. This switch is triggered through object contact and automated machine control.

Approvals

UL; CSA

Approvals

UL/ UL listed for Canada

Honeywell Limit Switch Comparison

Installation Instructions

Datasheet

Product Range Guide - Limit Switches & Machine Safety
