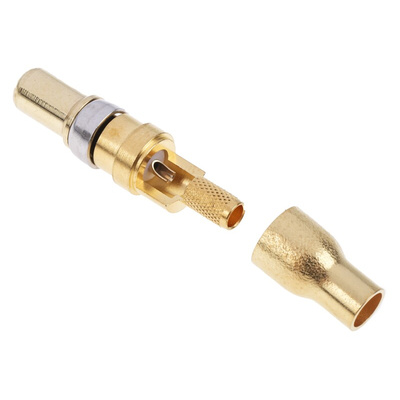

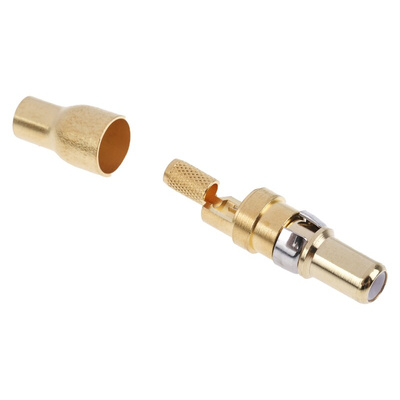

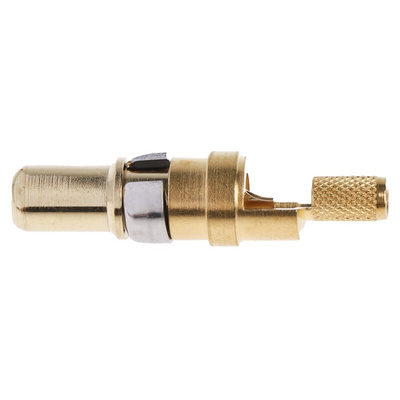

RS PRO Male Solder D-Sub Connector Coaxial Contact, Gold over Nickel Coaxial

This RS PRO male D-sub connector contact helps transfer signals and power from your printed circuit board (PCB). It has a coaxial contact for use with coaxial cables.


The centre contact is made from copper alloy and features gold over nickel plating, so it's highly conductive. The contact allows for cable mounting to keep signal interference low. To ensure a secure fit, crimp the braid and solder the centre contact.


You can use this versatile contact for a variety of applications in commercial, military and industrial environments. It complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, meaning it's shielded from damage caused by electrostatic discharge.

Features and Benefits

• Suitable for use with RG174/U cables


• Copper alloy contact material


• Gold over nickel contact plating


• Coaxial contact type


• Current rating of 2 A


• Male connector gender


• Length of 22.5 mm


• Maximum contact resistance of 50 mΩ


• Solder termination method


• Complies with RoHS (Restriction of Hazardous Substances) standards
