FMP005P103 / 1727040146, FCT from Molex, 172704 Series, Male Solder D-Sub Connector Power Contact, Gold over Nickel Power, 16 → 20 AWG, Контакты

Power/Coaxial Contacts

A range of Contacts designed for use in mixed layout Connector shells including Power, Coaxial and High Voltage types.
PCB holes for coax plug and socket: 4 holes 1.3mm dia. on 5.08mm ctrs, plus centre hole 1.3mm dia.
PCB mounting inserts are not suitable for use with right angle PCB connectors.
PCB holes for 20A and 40A PCB contacts are 2.85mm and 3.75mm respectively.

Snap-fit contacts removed with tool, stock no. 485-221
'M' DIN41612 connectors may also be used with mixed layout D shells
50 Ohm Coaxial contacts (straight) accept RG178B/U & RG174A/U cables. Use crimp tool (stock no. 470-099) for the braid and solder for the centre contact. Contacts removed with tool, stock no. 485-221

Note

Gender details relate to centre conductor

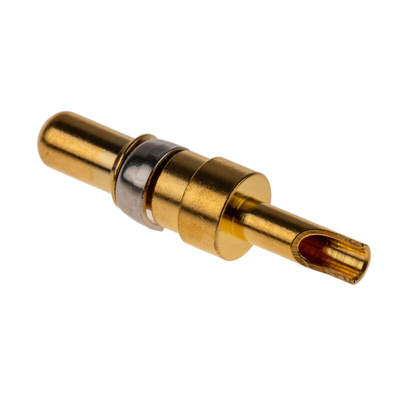

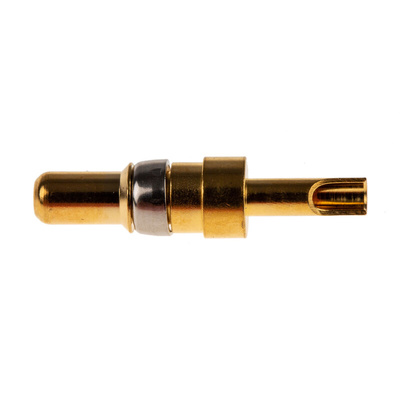

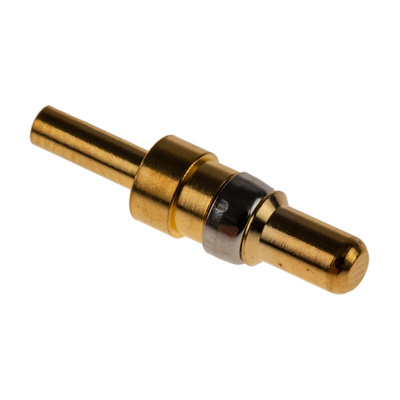

FCT from Molex Male D-Sub Connector Power Contact, 20 to 16AWG, 10A Current Rating - FMP Series - FMP005P103 / 1727040146

Use this FCT from Molex D-sub connector power contact to securely connect wires in your electronic and computer systems. It's essential for the effective transmission of power or data signals. The solder termination method assures you of a secure link that won't fail when equipment moves or vibrates. As this lightweight contact weighs just 1.9g, it won't put a strain on your printed circuit boards.

• Copper-alloy contact material is highly conductive and ensures the relay of dependable signals
• Wide operating temperature range of -55°C to +155°C makes it suitable for demanding environments

Applications

• Coaxial cables
• Pneumatic systems
• Automated control panels
• Mobile devices

Can I use this contact for both power and data signals?

Yes, this D-sub connector power contact has a current rating of 10A. This means it can relay combined power and data signals.

Mixed Contact 'D'

Mixed contact connectors suitable for making combined signal and power connections. Plug and socket options with solder bucket or 90° PCB terminations. Shell definition: 17W2 shell can have 17 mixed contacts in total. Shell is supplied with 15 signal contacts and has 2 cavities for power or coaxial contacts. Suitable for military, industrial or commercial applications and computer interfacing etc
