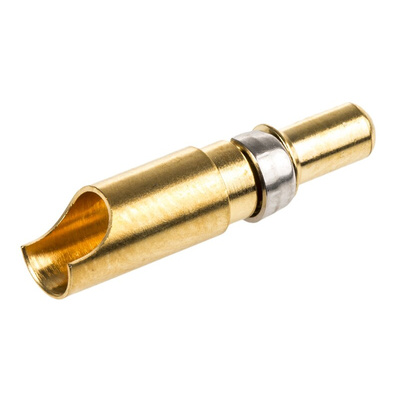

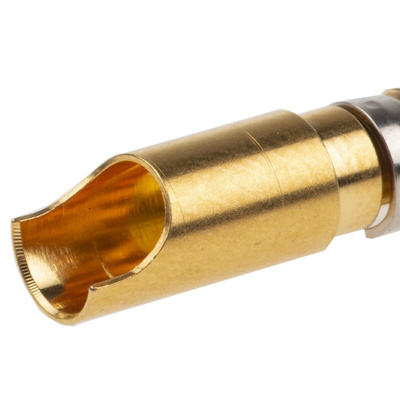

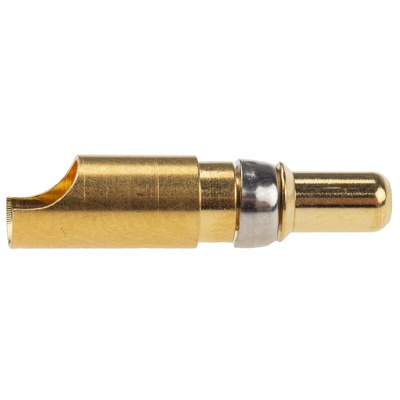

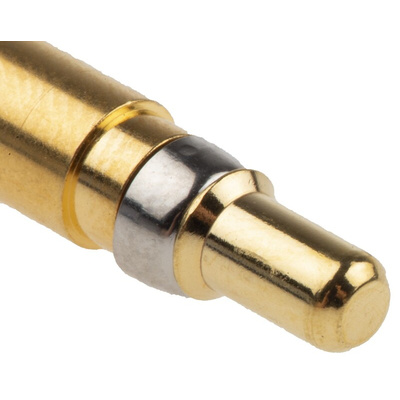

RS PRO Male Solder D-Sub Connector Power Contact, Gold over Nickel Power, 12 → 8 AWG

RS PRO Male Solder D-Sub Connector Power Contact, Gold over Nickel Power, 12 to 8 AWG

When you need to transfer power from your printed circuit board (PCB), turn to this RS PRO male D-Sub connector. It features a power contact to handle high-voltage and high-current applications.


Thanks to its copper alloy material, the centre contact offers good conductivity. You can cable mount it for reduced signal interference. It's also ready for soldering, so you can easily create a fast and reliable connection.


As part of the RS PRO range, this product has been tested for quality and reliability. It complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, so it's protected against damage from electrostatic discharge. Use this contact connector for applications that need a high current or voltage, including military and industrial computer systems.

Features and Benefits

• Copper alloy contact material


• Gold over nickel contact plating


• Power contact type


• Current rating of 40 A


• Male gender


• Length of 22.4 mm


• Maximum wire size of 8 AWG


• Minimum wire size of 12 AWG


• Solder termination method

RS Pro Datasheet
