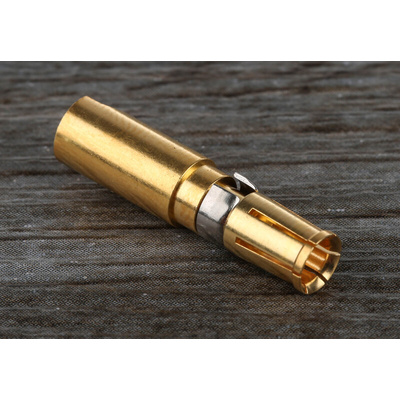

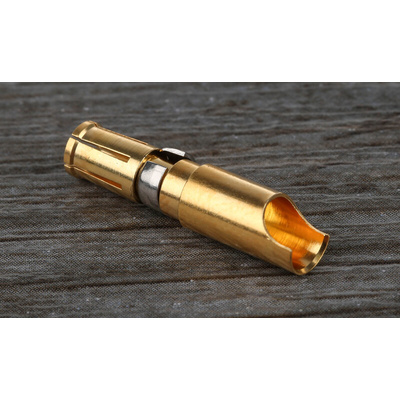

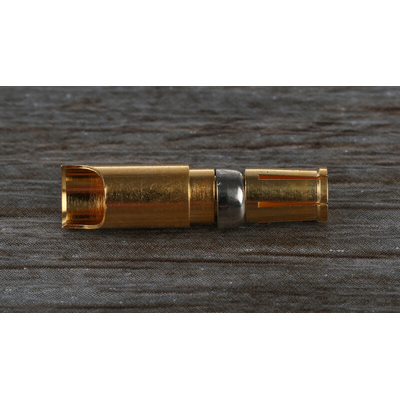

RS PRO Female Solder D-Sub Connector Power Contact, Gold over Nickel Power, 12 → 8 AWG

RS PRO Female Solder D-Sub Connector Power Contact, Gold Over Nickel Power, 12 → 8 AWG

This RS PRO D-Sub connector power contact is designed for use in mixed layout connector shells. It’s popularly used in electronic and computer systems for circuit boards, as it provides a reliable connection at an affordable price.

With 17 mixed snap-fit contacts in total, this female contact can carry combined signal and power connections. It includes 15 signal contacts and 2 cavities for power or coaxial contacts. The female contact has four PCB (printed circuit board) holes for your coax plug and socket and is made for 20A and 40A contacts. The plug and socket options are also made with solder bucket or 90° PCB terminations.

As part of the RS PRO range, the contact has been fully approved by engineers for quality and is RoHS (Restriction of Hazardous Substances) compliant.

Features and Benefits

• Copper alloy contact material with gold over nickel contact plating
• Maximum contact resistance of 50 Ω
• 8 AWG to 12 AWG (American Wire Gauge)
• 17W2 shell can have 17 mixed contacts in total
• 40 A current rating
• Length 22.8 mm
• PCB (printed circuit board) mounting inserts are not suitable for right-angle PCB connectors
