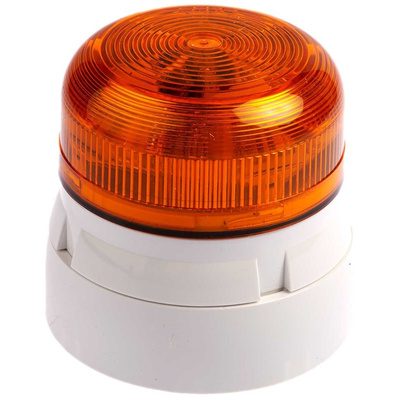

QBS-0028, Klaxon Flashguard QBS Series Amber Flashing Beacon, 230 V ac, Surface Mount, LED Bulb, Маячок

Standard Ultra Bright LED

All are of polycarbonate construction. Flash rate (where applicable) on all types is 1Hz. Operating voltages (ac) are ± 10%. Current consumption variable depending on operating voltage. Rated to IP65 (unless stated). Operating temperature range: -20 → 40°C

Suitable for continuous or flashing operation (where applicable)
Uses 8 high-reliability ultra-bright LEDs
Zero power consumption when connected in reverse polarity - useful for fire alarm applications

Klaxon Beacon

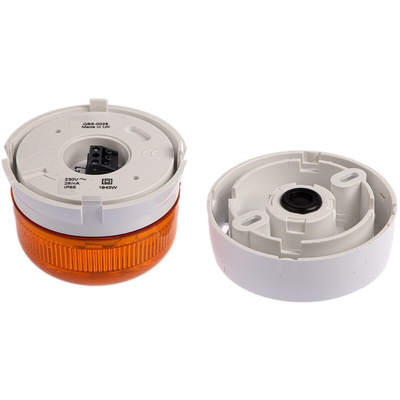

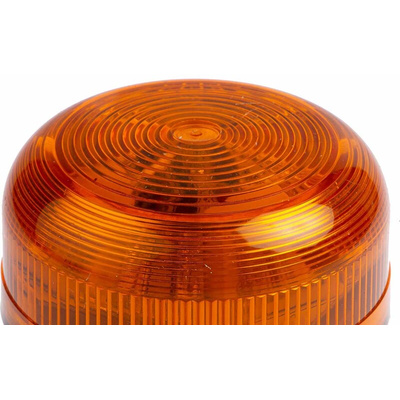

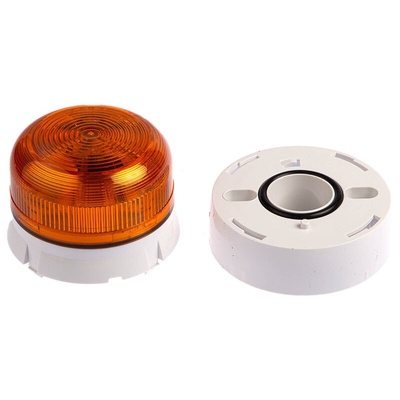

The Klaxon AC amber lens beacon with xenon flash tubes is fitted with a diffuser for greater visibility and spread of light. It has a low profile design and is constructed of high-quality polycarbonate. This waterproof flash guard includes a terminal block and 27mm deep base supplied with a seal and grommet. It is an ideal visual indicator for a security alert, emergency warning and general signalling.

Features and Benefits

• The supply voltage is 230VAC
• Xenon light blub
• Ease of installation with first-fix option on standard models
• Compact, ultra-modern sleek appearance
• White, high-quality polycarbonate housing
• Vandal-resistant, safety locking mechanism
• Zero power consumption when connected in reverse polarity - useful for fire alarm applications
• Operating temperature is between -20°C and 70°C

Certifications

• IP67 rated
