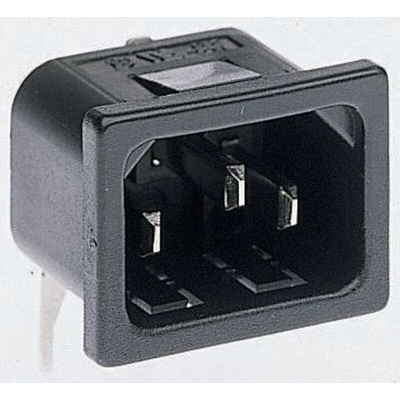

PX0575/15/PC, Bulgin C14 Right Angle Snap-In IEC Connector Male, 10A, 250 V ac, Разъем

10A Snap In PCB Mount IEC 320 Plug (C14)

Printed circuit board and panel mounted chassis plug
Depth 32.5mm, panel cut-out 19.8 x 27.4mm

Note

All of these plugs and sockets have a contact resistance of <10mΩ, and an insulation resistance of >10³MΩ. Their operating temperature is -40°C to +70°C

Approvals

UL recognised, CSA certified, VDE, BSI, SEMKO, IMQ

Approvals

UL recognised; CSA certified; VDE; BSI; SEMKO; IMQ

Datasheet
