815.100.00, Werma EM 815 Series Red Steady Beacon, 12 → 230 V ac/dc, Panel Mount, Incandescent Bulb, IP65, Маячок

Static High Beacon - 815 Series

Body constructed from ABS and lens Polycarbonate. All units are IP65.

Bulbs must be purchased seperately

Polycarbonate domes have a shock resistance of 20J
Vandal proof construction
Tamper-proof: bulbe change via rear access with bayonet mechanism
37mm mounting hole

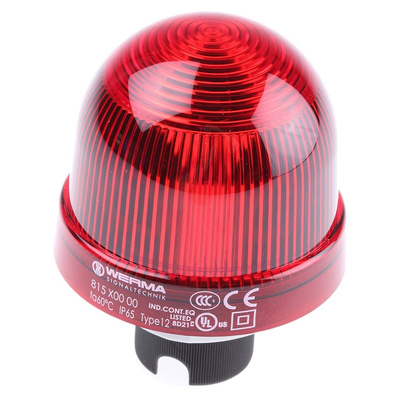

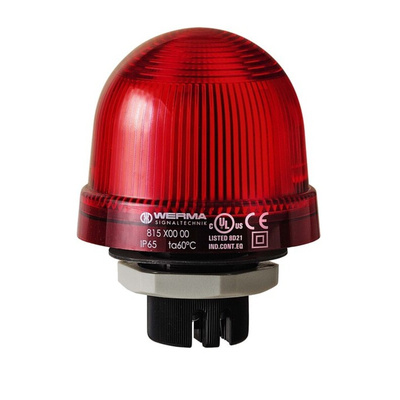

WERMA Red Incandescent Beacon, 12 to 230V AC/DC, 200mm Height - EM 815 Series - 815.100.00

This red incandescent beacon from WERMA emits a steady red light for industrial and commercial signalling. It's designed for panel mounting, making it suitable for installation on moving vehicles or stationary machinery. The red lens colour provides a clear indication of a warning, alerting personnel to hazardous situations to enhance workplace safety. The base is made of tough ABS (acrylonitrile butadiene styrene) for durability and resistance to impact. A red beacon like this one is often paired with green and amber beacons to create a stop-and-go signal system in factories.

Features & Benefits

• Wide operating temperature range of -20°C to +60°C for use in harsh environments
• Light weight of 96g to prevent strain on your panel
• Polycarbonate (PC) lens is UV (ultraviolet) stable to prevent fading in sunlight
• Broad supply voltage range of 12 to 240V AC/DC (alternating current/direct current) for use in most electrical set-ups

Applications

• Factory conveyors
• Utility vehicles
• Agricultural equipment
• Construction sites
• Machine automation

How much space does this beacon take up on a panel?

Thanks to its compact base diameter of 75mm, this beacon is a good choice for crowded panels where space is limited.

815-817 Beacons Instructions For Use

Machine Guarding and Safety Range Overview

Datasheet

Datasheet - 815.100.00

Datasheet - 815.100.00
