941100000, CAL 9400 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 2 Output Relay, 100 V ac, 240 V ac Supply Voltage, Регулятор температуры

CAL Temperature Controller

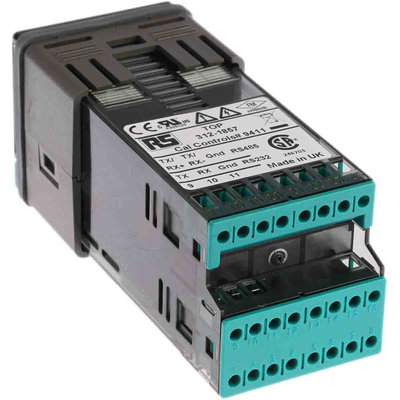

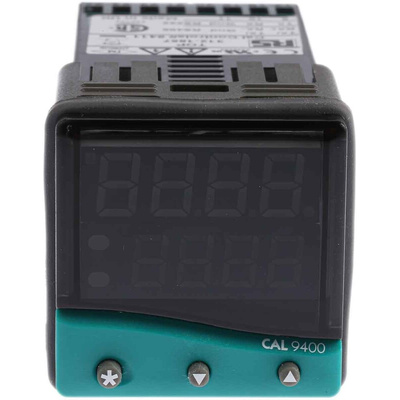

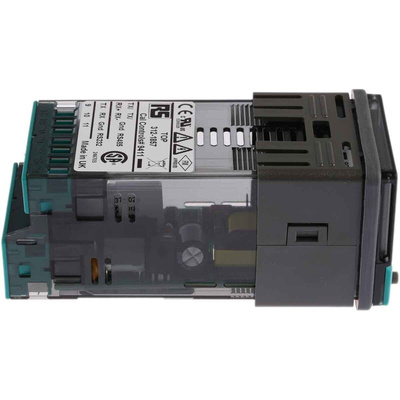

The CAL 9400 series temperature controller has a supply voltage rating ranging from 100VAC to 240VAC. This controller has a width of 48mm and a height of 48mm (1/16 DIN) device. It has one 2A SSD output and second relay output. It is easy-to-use and reliable within the most demanding process and manufacturing applications. It has an impact-resistant smoked fascia with rubberized buttons with positive feedback. It is enabled with a simple and efficient PID tuning and a unique DAC function that minimises overshoot.

Features and Benefits

1 x 4 digit LED display with 2 output LEDs
Accepts inputs from 9 thermocouple classes, 2-wire RTD and linear voltage in the range of 0mv to 50mv
CALgrafix configuration and data logging software
Easy-to-use auto tuning
Simple menu-driven configuration
Single ramp/soak (dwell) program

Certifications

CE certified
FM certified
IP66 rated
UL approved

UL Certificate (Canada)

UL Certificate

Datasheet

CE Certificate

Manual - Full

Manual - Comms

Accessory Guide

Product Guide
