RS PRO Bow Shackle, Stainless Steel, 0.4t, Соединительная скоба

Note

Stainless Steel Shackles have not been proof tested. *Nominal untested working load, in tonnes.

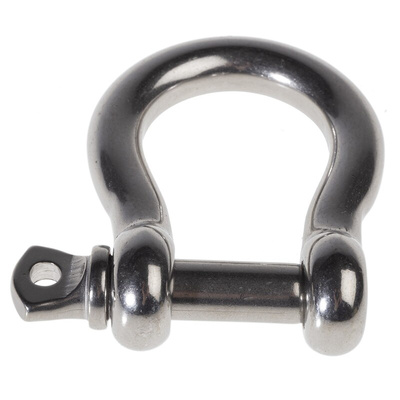

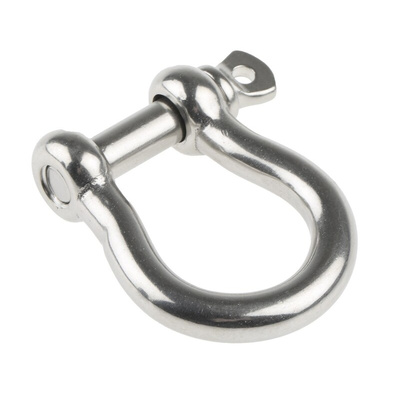

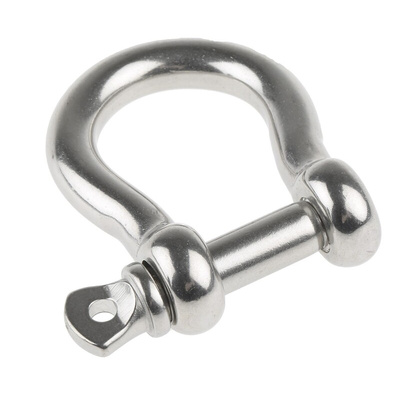

RS PRO Stainless-Steel Bow Shackle

RS Pro stainless-steel bow shackles are vital components for tensioning wires or securing loads. RS Pro offers four options in this range with safe working loads from 0.12t to 1t. Each shackle is made of durable and highly quality stainless-steel material ensuring a perfect connection to slings or rope, providing excellent reliability.
Note: Suitable for a wide variety of applications such as tensioning wires or securing loads. Not suitable for lifting applications.

Features and Benefits

• Stainless-Steel Shackle with crew pin


• Meets BS EN 13889-2003 and Federal specification RR-C-271D and type IVA standards


• The Bow Shackle comes with 3-year Warranty


• Pin diameter of 10 mm


• Jaw width of 20 mm


• Screw pin


• Anchor Shackle is ideal for use where rusting or contamination are not acceptable

Application

Bow Shackles are used in conjunction with slings and rope, vital component in the following areas:

• Wire Rope Slings


• Industrial crane rigging onboard large ships


• Commonly used in personal safety gear including climbing and mountaineering harnesses


• Vehicle recovery

Frequently asked questions

What are the widely accepted codes of practice when dealing with Shackles?

• Always perform regular check inspection


• Pay attention to the manufacturer or distributor specifications


• Use the correct size of the Shackle for the hook or sling straps


• Make sure to connect multiple sling legs to the body of the Shackle, and never to the pin itself


• Never use the Shackle to lift if it does not meet the required safety standards or shows signs of excessive wear

Why RS PRO?

RS Pro is our family brand and brings you a wide range of high-quality and high-value products to support your project. Trusted by engineers all over the world, every part of every RS PRO product is always rigorously tested against demanding industry standards. We are only giving the RS PRO seal of approval if we're confident of their exceptional quality, which means you can be convinced too.

This is not for lifting applications.

Note

Avoid exceeding 120 degrees for the angle when there is a requirement to use multiple-leg slings.
