088916 PKZM0-10-T, Eaton 6.3 → 10 A Motor Protection Circuit Breaker, 690 V ac, Автоматический выключатель

Eaton Motor Protection Circuit Breaker, 93 (L) x 45 (W) x 76mm (D), Screw Terminals - 088916 PKZM0-10-T

Put your electrical system in safe hands with this motor protection circuit breaker from Eaton. To ensure your equipment is safeguarded, the device has phase-failure sensitivity along with short circuit and overload protections. For convenience, the rotary switch lets you manually turn the motor on and off. A handy dial makes it easy to adjust the current between 6.3 and 10A to set your overload release. Use this MPCB to withstand high-peak inrush currents drawn by motor transformers in items such as pumps, compressors and fans.

Features & Benefits

• Takes harsh conditions in its stride, thanks to a wide operating temperature range of -25°C to +55°C
• Capable of 40 operations an hour to keep up with industrial demands
• Electrical and mechanical lifespan of 100,000 operations for durability
• Switched-off indicator included for simplicity

How do I install this motor protection circuit breaker?

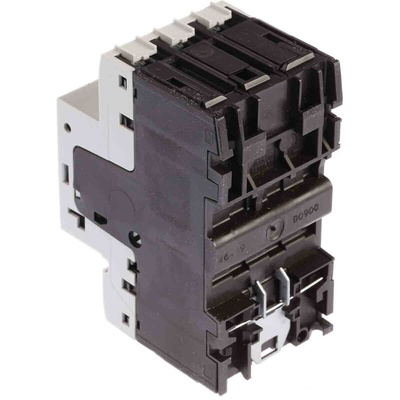

Rear clips mean you can snap the MPCB onto 7.5 and 15mm top-hat rails, making it quick to fit.

Can I combine the MPCB with a contactor?

Yes, this unit is compatible with xStart DIL contactors (such as 493-0040) to give you versatile motor control and protection.

Note

Eaton formerly known as Moeller
