Burkert Solenoid Valve 134590, 2 port(s) , NC, 24 V dc, 1/2in, Клапан

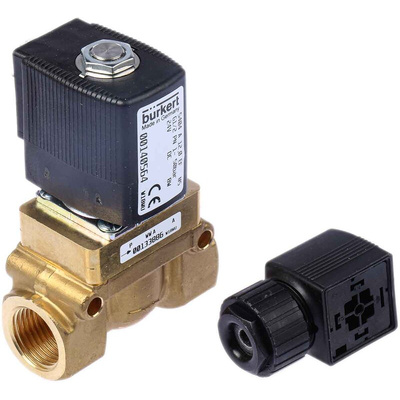

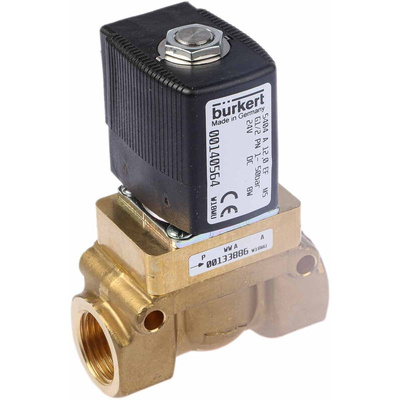

Burkert Solenoid Valve

The Burkert 2-port 1/2in G female push-over solenoid system has high-quality PTFE seal material. It requires minimum differential pressure for the valve switching function. Its maximum opening and closing time ranging between 400 milliseconds and 1500 milliseconds. This valve is suitable to use with compressed air pressure systems and gas turbines using compressed air, natural gas and water.

Features and Benefits

Supply voltage is 24VDC
Flow factor (Kv) is 2m³/h
Maximum working pressure is 50bar
Servo-assisted piston valve with an orifice up to DN50
Explosion proof versions for Cat. 2
Brass body with a polyamide coil
Suitable for gas and steam applications up to 160°C
Relief valves for compressors
Medium only in contact with body and diaphragm
High reliability
Unaffected by pressure surges
Easy coil change
Coil can be locked in four 90° positions, or move between as required
Operating temperature ranging between -10°C and 55°C

Certifications

IP65 rated

Solenoid on/off valve, 2/2-way - Type 5404

134590 Datasheet
