FCS-G1/2A4P-LIX-H1141, Turck FCS Series Compact Mount Flow Controller, 3 → 300 (Oil) cm³/s, 5 → 150 (Water) cm³/s, Analogue, Регулятор потока

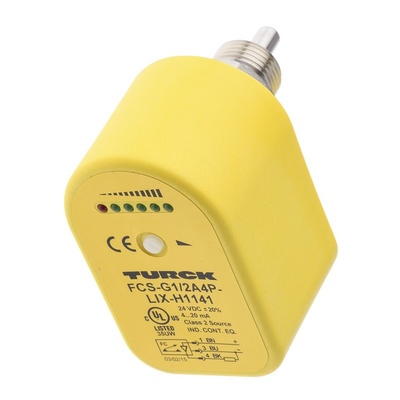

Turck Flow Controller, Immersion Sensor Type, G1/2 Pipe Thread - FCS Series - FCS-G1/2A4P-LIX-H1141

Keen to fit close waterflow supervision into your system? Take charge with this Turck flow controller. As the module converts flow rates to precise 4 to 20mA analogue signals, it clearly indicates how the fluid is moving for convenient monitoring. Thanks to its immersion sensor, the device automatically catches changes in rate to keep its process rolling along. An adjustable flow limit between 5 and 150cm³/s makes the unit a flexible fluid control choice. Spot-checking is a breeze, as the module's bright LED band shows its system's flow status for fuss-free inspection.

Features & Benefits

• Regulation M12-thread electrical connection to work with standard equipment
• Simple screw dial control, ensuring easy flow limit adjustment
• IP65-rating indicates protection against dust and low-pressure water jets, staying strong in tough settings
• Compact block dimensions of 50 (W) x 78 (H) x 44mm (D) to tuck into busy systems

Applications

• Chemical processing
• Agricultural equipment
• Wastewater management

What fluids can I use this device with?

It's best to use this controller only with water to minimise the risk of corrosion damage to its sensitive monitoring element.
