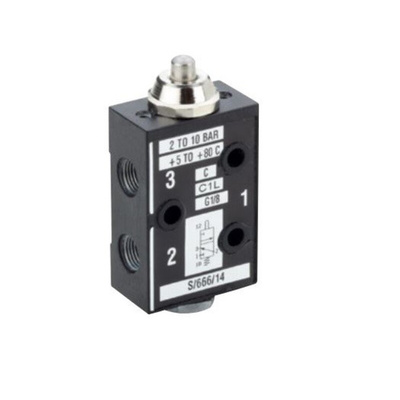

S/666/14, Norgren Plunger 3/2 Pneumatic Manual Control Valve S/666 Series, G 1/8, 1/8in, Клапан

IMI Norgren Pneumatic Manual Control Valve, Plunger Spring Action, 2 to 10 Bar Operating Pressure - S/666 Series - S/666/14

Want to get the upper hand over airflow in your system? Take the plunge with this pneumatic manual control valve from IMI Norgren. After actuation, a built-in spring return is at the ready to push it back to its original position, taking the work of resetting it off your to-do list. Mounting the device in your compressed air system is a breeze thanks to its simple G1/8 threaded connection. Thanks to a tough die-cast zinc alloy body shielding it from impacts and corrosion, you can count on it even in challenging operations.

Features & Benefits

• Maximum flow rate of 197L/min for use in high-flow systems
• Broad operating temperature range between -20°C and +80°C to withstand harsh industrial environments
• Robust NBR seals are resistant to solvents and chemicals, for long-lasting use in contaminated settings

Applications

• Conveyor systems
• Material handling
• Bottling plants
• Industrial kitchens

Does this control valve allow more than one flow path?

Yes, it does. This manual control valve has a 3/2 function, which means it can control flow through three ports and two positions to support a number of different flow configurations.
