S/666/83/R, Norgren Roller 3/2 Pneumatic Manual Control Valve S/666 Series, G 1/8, 1/8in, Клапан

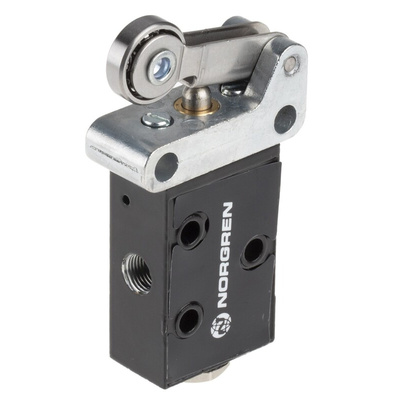

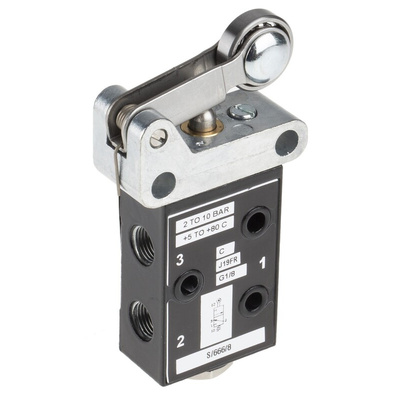

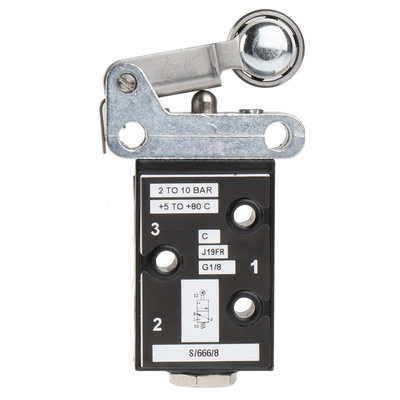

IMI Norgren Poppet Manual Control Valve, 3/2 Function, 197L/min Flow Rate - S/666 Series - S/666/83/R

Looking for a way to control how air flows through your pneumatic system? Turn to this manual control valve from IMI Norgren. Its 3/2 function means it directs air through three ports by moving in two directions. For versatility, you can also use it as a 2/2 valve by plugging the exhaust port. Thanks to a maximum flow rate of 197 litres per minute, you can safely use this component in high-flow systems. Its die-cast, zinc-alloy body is corrosion-resistant, so you can be sure of an extended service life.

Features & Benefits

• Comes with through-holes for convenient mounting
• Maximum operating pressure of 10 bar for use in low-pressure environments
• Broad operating temperature range between -20°C and +80°C for use in demanding environments

Applications

• Medical and pharmaceutical industry
• Assembly plants
• Packaging industry
• Automotive industry

How does this control valve work?

This manual control valve has an internal poppet mechanism that closes a port to block the flow of fluid. It also features a roller spring arm that lets you control the movement of the poppet. As the roller spring is made from aluminium, it's impact-resistant and can withstand demanding industrial setups.

Datasheet
