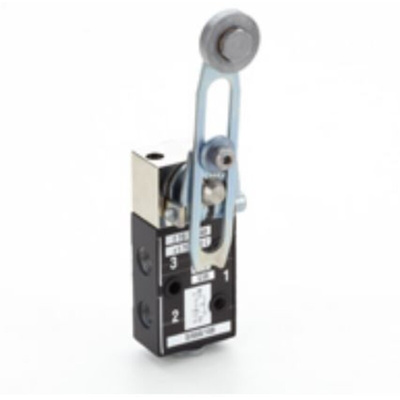

S/666/108, Norgren Roller Lever 3/2 Pneumatic Manual Control Valve S/666 Series, G 1/8, 1/8in, Клапан

Norgren S/666 Series - Roller/Spring 3/2 Mechanical Valves

Norgren S/666 series 3 port 2 way mechanically actuated poppet valves with roller spring actuator. These normally closed pneumatic limit switches feature a G1/8 port connection size and poppet design that offers high flow rate within compact size.

Features and Benefits

• Compact diecast zinc body

• Aluminium roller spring arm

• Can be operated as a 2/2 valve, when the exhaust port is plugged

• Maximum operating pressure 10 bar

• Temperature range -20°C to +80°C

IMI Norgren Pneumatic Manual Control Valve, Roller Leaver Control Mechanism, 197L/min Flow Rate - S/666 Series - S/666/108

Get your system up and running with this pneumatic manual control valve from IMI Norgren. It can handle up to 10 bar of pressure, so it won't buckle under the strain of demanding conditions. The robust die-cast zinc alloy body is hard-wearing and corrosion-resistant, which means you can be sure of reliable performance, even when conditions are damp. Want to convert to a 2/2 valve? Simply plug up this versatile unit's exhaust port.

• Wide operating temperature range between -20°C and +80°C for use in demanding environments
• Standard G1/8 thread size for quick fitting to your existing system
• Robust and hard-wearing NBR seals block out debris for long-lasting operation
• Mounting is a breeze thanks to the through-holes on the valve body

Applications

• Automation systems
• Manufacturing facilities
• Automotive production
• Construction plants

What's the benefit of using a roller leaver control mechanism?

Roller levers like you'll find on this valve are often used in automated systems since they can react to the changing positions of different components. For example, when a cylinder decompresses, it presses down on the lever, activating airflow.
