S/666/106, Norgren Rod Lever 3/2 Pneumatic Manual Control Valve S/666 Series, G 1/8, 1/8in, Клапан

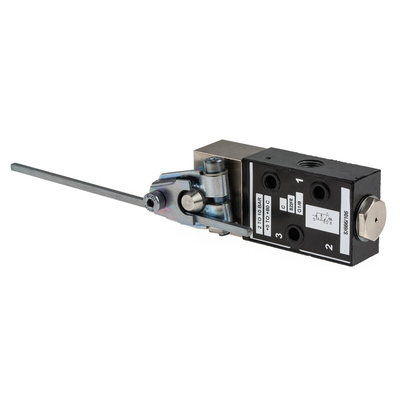

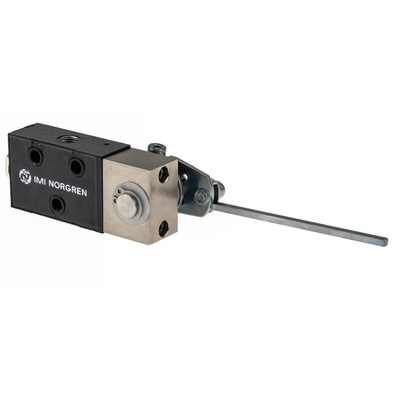

IMI Norgren Rod Lever Manual Control Valve, 3/2 Function, 197L/min Flow Rate - S/666 Series - S/666/106

Looking for a reliable way to control airflow in your pneumatic system? Turn to this manual control valve from IMI Norgren. As it has a 3/2 function, you can move it in two directions to direct the air through three ports. The through-holes in its body let you quickly mount it in a pneumatic cylinder, eliminating the need for specialist tools. The device's compact dimensions of 75 (length) x 34 (width) x 19mm (height) make it suitable for installation on smaller cylinders.

Features & Benefits

• Broad operating pressure range between 2 and 10 bar for versatility
• Nitrile butadiene rubber seals are solvent-resistant to withstand harsh settings
• Ambient operating temperature range between -20°C and +80°C for durability in demanding environments

Applications

• Construction industry
• Gas plants
• Medical and pharmaceutical manufacture
• Food processing

How do I operate this valve?

To operate this valve, simply turn the rod lever in the left or right direction to close or open the ports.

How much airflow can this valve withstand?

It has a maximum flow rate of 197L/min, so you can safely use it in high-flow pneumatic systems.

S/666-S/667 Pilot/Mechanical and Manually Actuated Control Valve Technical Data Sheet

Datenblatt
