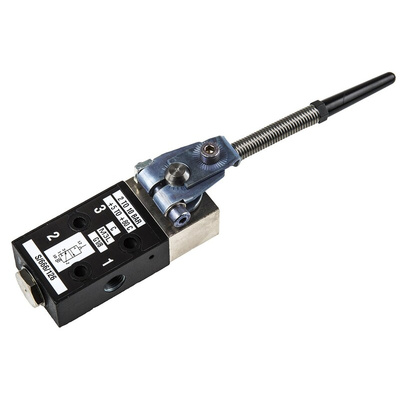

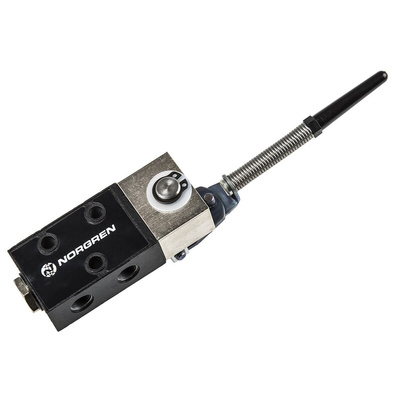

S/666/126, Norgren Antenna 3/2 Pneumatic Manual Control Valve S/666 Series, G 1/8, 1/8in, 666, Клапан

IMI Norgren Pneumatic Manual Control Valve, 10 Bar Maximum Operating Pressure, -20°C to +80°C Operating Temperature - S/666 Series - S/666/126

Take charge of your machinery with this pneumatic manual control valve by IMI Norgren. It lets you manage the flow of air between different parts of a pneumatic system using the built-in antenna spring rod mechanism. As the unit performs reliably in a wide operating temperature range between -20°C to +80°C, you can trust it to shrug off the demands of harsh industrial environments. Thanks to a maximum flow rate of 197l/min, this component is safe for use with heavy-duty systems.

Features & Benefits

• Nitrile rubber seal provides a reliable fit to keep contaminants out
• Standard G1/8 thread size for wide compatibility with existing equipment
• Poppet design means it can handle high airflow despite its compact size
• Can be used as a 2/2 valve by plugging the exhaust port, for versatility

Applications

• Automotive industry
• Factory automation
• Mould water cooling
• Medical equipment

What material is this component made from?

The pneumatic control valve has a die-cast zinc-alloy body, so you can count on its strength and corrosion-resistant properties for a long service life.

S/666-S/667 Pilot/Mechanical and Manually Actuated Control Valve Technical Data Sheet

Catalogue - Industrial Automation
