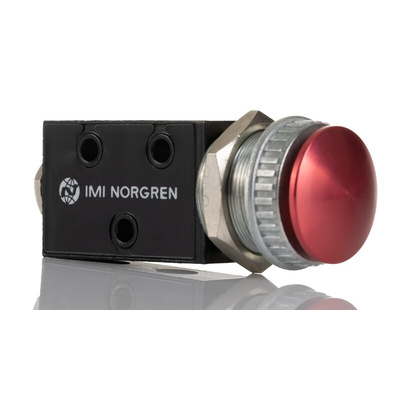

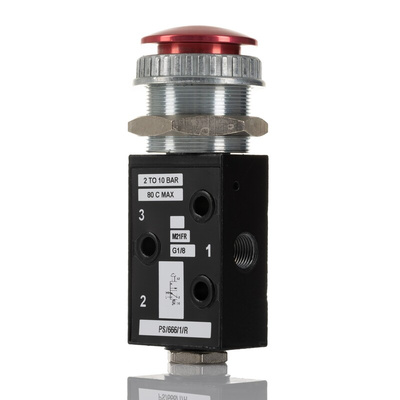

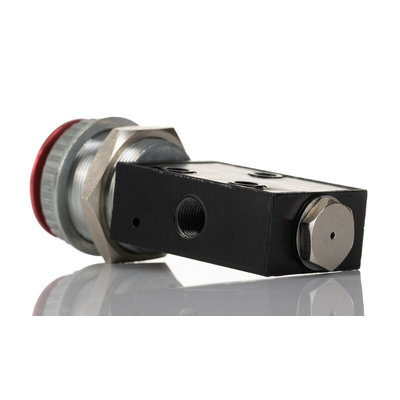

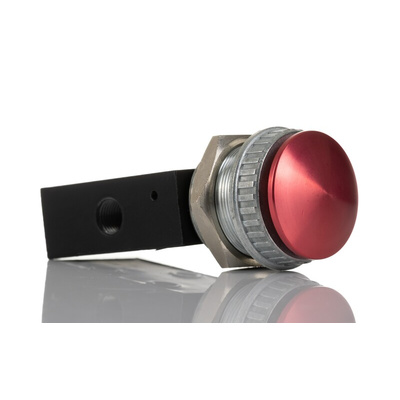

IMI Norgren Push Button 3/2 Pneumatic Manual Control Valve S/666 Series, G 1/8, 1/8in, PS/666/1/R, Клапан

IMI Norgren Pneumatic Manual Control Valve, Red Control Button, 10 Bar Operating Pressure - S/666 Series - PS/666/1/R

Pick this pneumatic manual control valve from IMI Norgren to keep your system running smoothly. It has three ports and two positions so it's a handy option for pneumatic actuation and pressure release, as well as exhaust and vacuum processes. Operating this component is simple – just press the large round push button to determine the position of the valve. The unit's compact poppet design means it delivers a high rate of flow from a space-saving package. A standard 29mm mounting hole means it's a breeze to install.

Features & Benefits

• Diecast zinc alloy construction is corrosion-resistant for a long lifespan
• Broad operating temperature range between -20°C and +80°C means it's suitable for harsh environments
• Standard G1/8 thread for easy compatibility
• Red control button is easy to spot in busy environments

Applications

• Consumer-goods manufacture
• Food and drink production
• Medical equipment

What pressure level can this valve operate up to?

This valve has a maximum operating pressure of 10 bar, so it's suitable for medium-duty manual control applications.

Push Button & Selector - Norgren

3 and 5 port valves for for multi-directional flow and dual supply applications. Suitable for use with cylinders up to 50mm bore. High flow capacity with a wide range of operators.,Manufactured with lightweight corrosion resistant materials.

S/666-S/667 Pilot/Mechanical and Manually Actuated Control Valve Technical Data Sheet
