PS/666/1/G, Norgren Push Button 3/2 Pneumatic Manual Control Valve S/666 Series, G 1/8, 1/8in, PS/666, Клапан

IMI Norgren Pneumatic Manual Control Valve, Panel Mounting, 29mm Mounting Hole Diameter - S/666 Series - PS/666/1/G

Looking for a hands-on way to direct the airflow in your system? This 3/2-way pneumatic manual control valve from IMI Norgren puts power at your fingertips. By pressing its green button, you can adjust flow direction and ensure that your air-powered process keeps breezing along. Thanks to its small size of 75 (H) x 33.5 (W) x 19mm (D), this is a space-saving unit that easily squeezes into setups where there's not much room to spare.

Features & Benefits

• Widely compatible with connecting components thanks to a G1/8 pneumatic connection
• Die-cast zinc alloy body fends off rust to allow for use in high levels of ambient water vapour
• Nitrile seals are abrasion-resistant to prevent leaking due to scrapes and scratches
• High flow rate of 197L/min means it's suitable for use in heavy-duty pneumatic systems

Applications

• Oil and gas industry
• Food and beverage processing
• Marine technology

Can I use this valve in harsh environments?

Yes, you can – thanks to its broad operating temperature range between -20ºC and +80ºC, this hardy device is an ideal choice for applications in challenging settings.

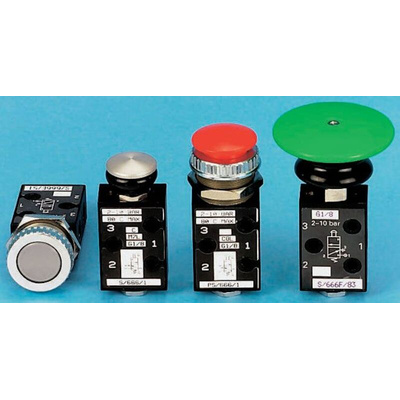

Push Button & Selector - Norgren

3 and 5 port valves for for multi-directional flow and dual supply applications. Suitable for use with cylinders up to 50mm bore. High flow capacity with a wide range of operators.,Manufactured with lightweight corrosion resistant materials.

S/666-S/667 Pilot/Mechanical and Manually Actuated Control Valve Technical Data Sheet
