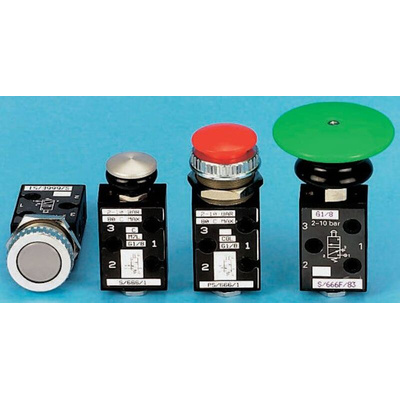

PS/666/1/N, Norgren Push Button 3/2 Pneumatic Manual Control Valve S/666 Series, G 1/8, 1/8in, III B, Клапан

IMI Norgren Pneumatic Manual Control Valve, Die-Cast Zinc Alloy Body, 10 Bar Maximum Operating Pressure - S/666 Series - PS/666/1/N

Need control over the flow of air through your pneumatic system? It's at your fingertips with this manual control valve from IMI Norgren. Thanks to the poppet design, this rugged piece of kit is a robust choice for high-flow applications of up to 197L/min. The easy-to-use push button actuator makes operation a breeze, and the durable plastic material can stand up to the stresses of a harsh working environment. For flexible use, the device works well in pressure levels between 2 and 10 bar. As it's a 3/2 valve, this is an option that's well-suited to use with single-action cylinders.

Features & Benefits

• Compatible with harsh conditions, thanks to an operating temperature range of -20°C to +80°C
• Standard G1/8 connection thread integrates easily into your setup
• NC configuration means air can't flow through the system until you're ready

Applications

• Industrial automation
• Material handling
• Packaging machines

How do I mount this device?

For quick and straightforward installation, use a regulation 29mm diameter mounting hole to secure this pneumatic manual control valve to the appropriate panel on your equipment.

Push Button & Selector - Norgren

3 and 5 port valves for for multi-directional flow and dual supply applications. Suitable for use with cylinders up to 50mm bore. High flow capacity with a wide range of operators.,Manufactured with lightweight corrosion resistant materials.

S/666-S/667 Pilot/Mechanical and Manually Actuated Control Valve Technical Data Sheet
