6862-201-16278, Deutsch Female Crimp Circular Connector Contact, Contact Size 16, Wire Size 20 → 16 AWG, Контакты разъема

Machined Crimp/Solder Contacts

• Stock No. 314-6840 is a size 16 Pin Crimp for IP67 Connector
• Stock No. 314-6856 is a size 20 Pin Crimp for IP67 Connector
• Stock No. 314-6862 is a size 22 Pin Crimp for IP67 Connector
• Stock No. 314-7449 is a size 16 Socket Crimp for IP67 Connector
• Stock No. 314-7455 is a size 20 Socket Crimp for IP67 Connector
• Stock No. 314-7461 is a size 22 Socket Crimp for IP67 Connector

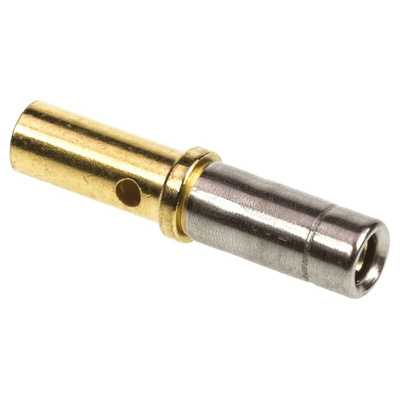

Deutsch Socket Contact

The Deutsch 6862 series female socket contact has a contact size of 16 and wire size ranging between 16AWG and 20AWG. This contact is made of copper alloy and has gold over nickel plating. It can be used with an IMC series connector.

Features and Benefits

Current rating is 13A
Voltage rating is 1kVAC
Contact resistance is 10mohm
Crimp termination
Operating temperature ranging between -55°C and 175°C

Certifications

IP67 rated

Quick Connect Series

A range of hard wearing RoHS compliant, IP68 sealed electrical connectors. The thumb latch mechanism and chunky keyway allows for easy connection and disconnection. Back fittings enable either half to be panel mounted or sealed to a cable. A flange can be added for bulkhead mounting. Loose contacts can be soldered or crimped. The plug half is provided with a cap to protect the contacts when the mated pairs are uncoupled.

Constructed from Ultem® impact, temperature and corrosion resistant composite material, ideal for use with over-moulding and heat shrink tube
Positive thumb latch receptacle has pin contacts and the plug socket contacts
2, 7 and 12 way scoop proof plan forms
