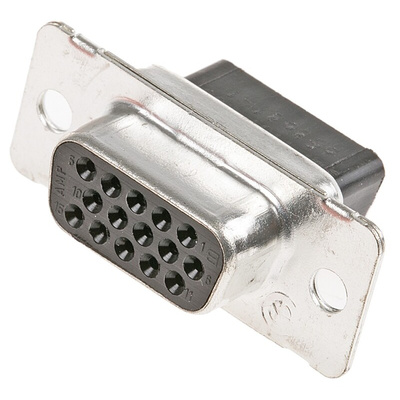

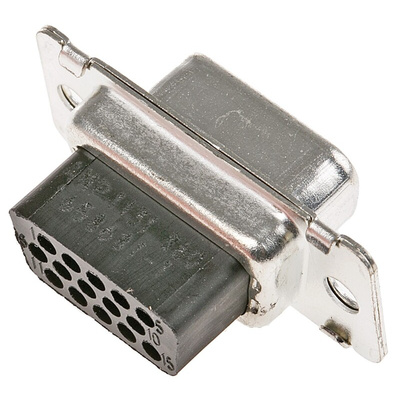

1658681-1, TE Connectivity Amplimite HDP-22 15 Way Cable Mount D-sub Connector Socket, Разъем

AMPLIMITE D-Sub Cable Connector, HDP-22 Series, Crimp Snap-In Contact

TE Connectivity's range of crimp d-sub connectors boast tin plated steels shells with a 94V0- black thermoplastic inserts. These AMPLIMITE are high density crimp connectors, approximately 65% higher density then HD-20 connectors. These connectors will mate with any size 22 d-sub connector that dimensionally complies with MIL-C-C24303.

•65% higher density than HD-20 connectors
•Space saving
•94V0 black thermoplastic insert
•Tin plated, steel shell

Need crimp contacts?
718-1207 & 680-9692

PRO-CRIMPER III – 314-8032

Approvals

UL listed, CSA certified

Approvals

UL Listed; CSA Certified

Standards

MIL-C-24308

TE Connectivity Amplimite HDP22/HD22

High density connectors for use where a higher number of contacts are required in a given body size. e.g. standard 15 pin D connector shell contains 26 contacts.

Suitable for military, industrial or commercial applications and computer interfacing etc.

1658681 Customer Drawing

Product Specification

Application Specification

1658681-1 Datasheet
