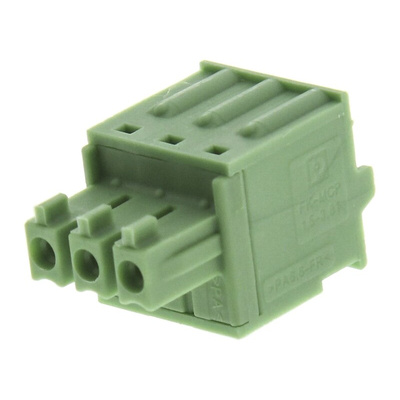

1851054, Phoenix Contact 3.81mm Pitch 3 Way Pluggable Terminal Block, Plug, Cable Mount, Spring Cage Termination

Phoenix Contact MINI COMBICON FK-MCP 3.81mm Terminal Block Plug Connectors

The FK-MCP series from Phoenix Contact are MICRO COMBICON plug-in PCB connectors. These connectors are made user-friendly with no tools needed for installation as it is simply a push in technology, along with a defined contact force the ensures the connection remains stable over the long term. Not to mention, these PCB connectors are easily tested with a 1mm diameter test connector that simply plugs in, allowing for rapid testing. The FK-MCP series are rated for 8 A with a voltage of 160 V and boasts a 3.81mm pitch for versatile use.

The contact material is the FK-MCP connectors are Cu (Copper) alloy and they're built in a green polyamide housing. Colour coded actuation levers can be found on the front and allow you to form a strong connection without the need for any specialist tools.

Features and benefits:

• Spring clamp technology for quick connection - no tools needed


• High copper content for low resistance and greater conductivity


• Integrated test points for testing with connector inserted


• 2 to 12-way versions


• Flammability rating UL94 V0


• Defined contact force allows your connection to stay strong over-time


• 1mm testing port for convenient testing


• Operation and conductor connection from one direction enable integration into front of the device

Applications:

The MICRO COMBICON series can be used typically in applications such as, but not limited to, control wiring, instrumentation, control and measurement and industrial electronics.

Approvals

UL (E60425); CSA (LR13631)

Approvals

UL (E60425); CSA (LR13631)
