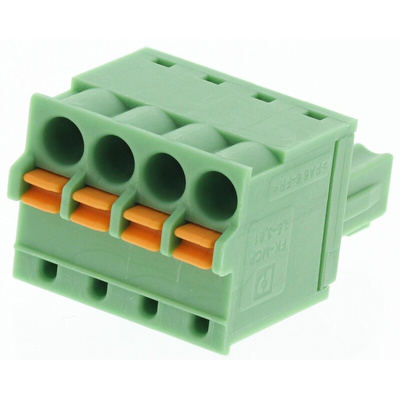

1851067, Phoenix Contact 3.81mm Pitch 4 Way Pluggable Terminal Block, Plug, Cable Mount, Spring Cage Termination

Phoenix Contact MINI COMBICON FK-MCP 3.81mm Terminal Block Plug Connectors

The FK-MCP series from Phoenix Contact are MICRO COMBICON plug-in PCB connectors. These connectors are made user-friendly with no tools needed for installation as it is simply a push in technology, along with a defined contact force the ensures the connection remains stable over the long term. Not to mention, these PCB connectors are easily tested with a 1mm diameter test connector that simply plugs in, allowing for rapid testing. The FK-MCP series are rated for 8 A with a voltage of 160 V and boasts a 3.81mm pitch for versatile use.

The contact material is the FK-MCP connectors are Cu (Copper) alloy and they're built in a green polyamide housing. Colour coded actuation levers can be found on the front and allow you to form a strong connection without the need for any specialist tools.

Features and benefits:

• Spring clamp technology for quick connection - no tools needed


• High copper content for low resistance and greater conductivity


• Integrated test points for testing with connector inserted


• 2 to 12-way versions


• Flammability rating UL94 V0


• Defined contact force allows your connection to stay strong over-time


• 1mm testing port for convenient testing


• Operation and conductor connection from one direction enable integration into front of the device

Applications:

The MICRO COMBICON series can be used typically in applications such as, but not limited to, control wiring, instrumentation, control and measurement and industrial electronics.

Approvals

UL (E60425); CSA (LR13631)

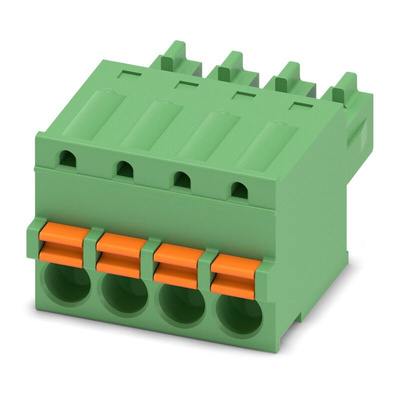

Phoenix Contact FK-MCP 1.5/ 4-ST-3.81 Series Pluggable Terminal Block, 8A, 320V - 1851067

This Phoenix Contact pluggable terminal block offers a reliable solution for those in the automation, electronics, electrical, and mechanical industries. Designed for efficiency and ease of use, this terminal block allows for quick and secure connections. With a current rating of 8A and a pitch of 3.81mm, it is a versatile option for a wide range of applications.

Features & Benefits

• Allows for time saving push in connection, no tools required
• Defined contacts force ensures stability over the long term
• Colour coded actuation lever for intuitive use
• Enables integration into the front of devices with one direction operation and conductor connection
• Quick and convenient testing with integrated test option

Applications

• Suitable for use in printed circuit board connectors
• Ideal for applications requiring a straight terminal block design
• Perfect for projects where a green terminal block is needed
• Well-suited for projects requiring a spring cage terminal block
• Ideal for projects requiring a 4-contact terminal block with a pitch of 3.81mm

Can I use this terminal block for printed circuit board connectors?

Yes, the Phoenix Contact pluggable terminal block is suitable for use in printed circuit board connectors.

Will this terminal block work for applications that require a straight design?

Yes, this terminal block features a straight orientation, making it perfect for such applications.

Is the green colour of the terminal block significant?

The green colour allows for easy identification and organisation in projects.

Can this terminal block be used in projects that require a 4-contact design with a 3.81mm pitch?

Yes, this terminal block is designed precisely for applications that require 4 contacts with a 3.81mm pitch.

Does this terminal block feature a spring cage for secure connections?

Yes, the spring cage termination method ensures reliable and secure connections.

Approvals

UL (E60425); CSA (LR13631)
