T70C3800, Norgren Quick Exhaust Valve, G 3/8 Female x 10 bar, Threaded, Фитинг

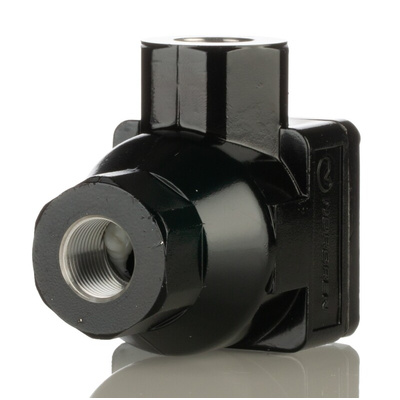

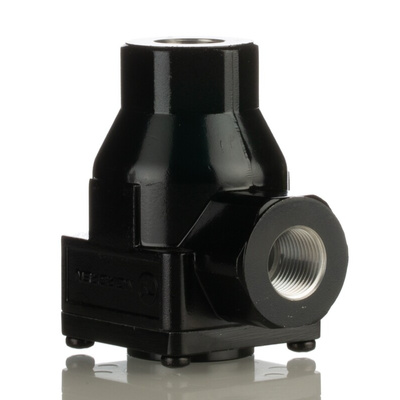

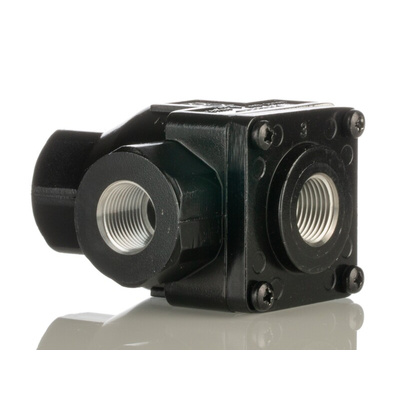

IMI Norgren Quick-Exhaust Valve, G3/8 Female Thread, 0.5 to 10 Bar Operating Pressure - T70 Series - T70C3800

Safely discharge air from your pneumatic equipment using this quick-exhaust valve from IMI Norgren. It helps to keep your devices running efficiently and prevents damage to your system by stopping the build-up of air. Thanks to its broad operating pressure range between 0.5 and 10 bar, you can safely use the valve in low-pressure and high-pressure conditions. It comes with seals that are made of nitrile rubber for resistance to oils, chemicals and solvents, helping to prevent leaks in heavy-duty applications.

Features & Benefits

• Light weight of 0.21kg for reduced strain on the cylinder
• Wide operating temperature range between -20°C and +80°C for use in harsh environments
• Durable aluminium-alloy body for resistance to impact and corrosion

Applications

• Hydraulic equipment
• Conveyor systems
• Food and beverage production
• Marine industry
• Manufacturing lines

How do I mount this quick-exhaust valve?

To properly mount this valve, attach it directly to the exhaust port side of your pneumatic cylinder. It comes with a built-in G3/8 female threaded connection for easy and secure installation.

T70 Series Quick Exhaust Valves Technical Data Sheet
